Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

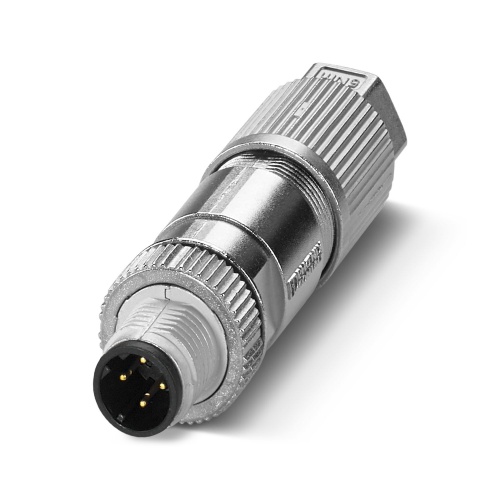

Phoenix Contact 1411068 Data connector SACC-M12MSD-4QO SH PN
Normally In Stock
Code: 149827
Phoenix Contact 1411068 - 4 Positions - CuSn - 24 AWG - IP65 - Insulation Displacement Connection - M12
Condition: New
Usually ships Same Day or Next Day$33.54
Sale Price
$27.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

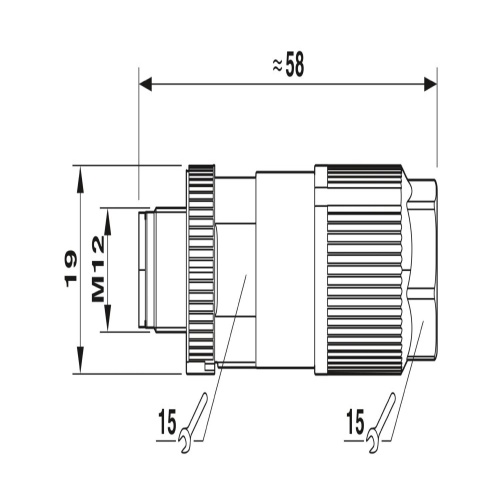

Phoenix Contact 1411068 A data connector with a PROFINET CAT5 Ethernet connection is available in a 4-position configuration, utilizing an insulation displacement connection method. The M12 plug features a straight design and has a coding of D, with the body made from zinc die-cast material that is nickel-plated for added protection. A shielded cable is used to provide additional security, and the external diameter of the connector ranges from 5 mm to 9.7 mm.
Specifications
Connector Material
PA 6.6
Connector Material
Cusn
Connector protection
IP65
Manufacturer
Phoenix Contact
Number of Positions
4
Component
Data
Sub Component
Cable Side
Features
Safe use in the field, thanks to a high degree of protection

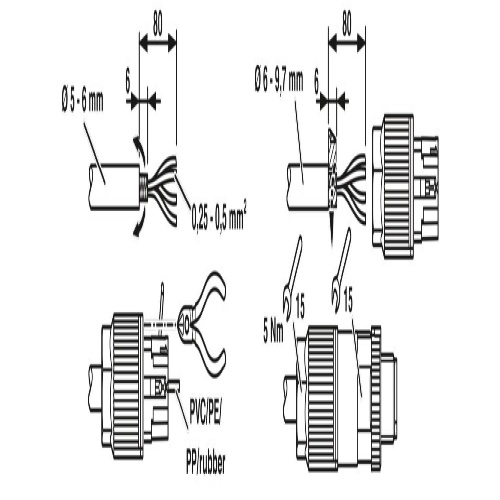

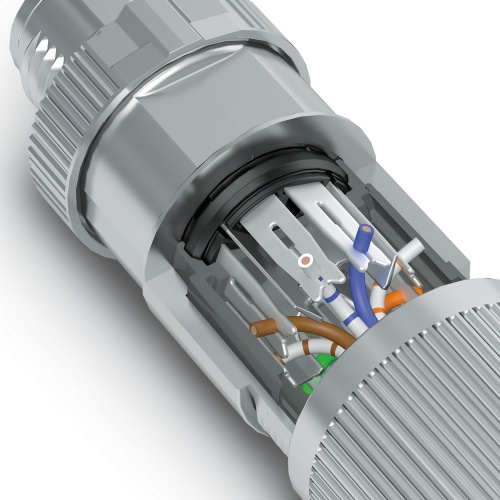

Insulation displacement connection: innovative and time-saving assembly without stripping the single wire
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
Downloads
Code: 149827
Phoenix Contact 1411068 Data connector SACC-M12MSD-4QO SH PN
$33.54
Sale Price
$27.95
