Phoenix Contact 1424664 Connector SACC-M12FSB-5PL SH
Normally In Stock
Code: 149662
Phoenix Contact 1424664 - Connector - 5 Positions - CuSn - 26 AWG - IP65 - Push-Lock Connection
Condition: New
Usually ships Same Day or Next Day$32.04
Sale Price
$26.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

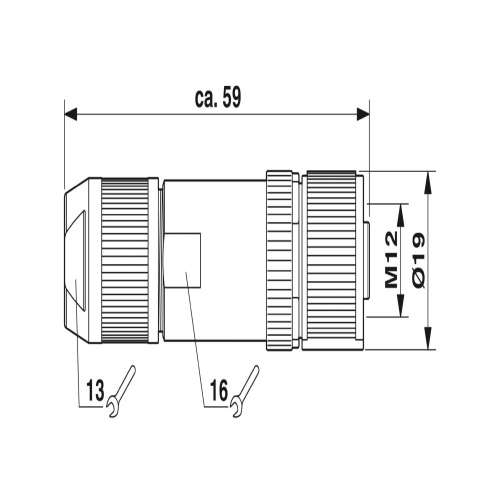

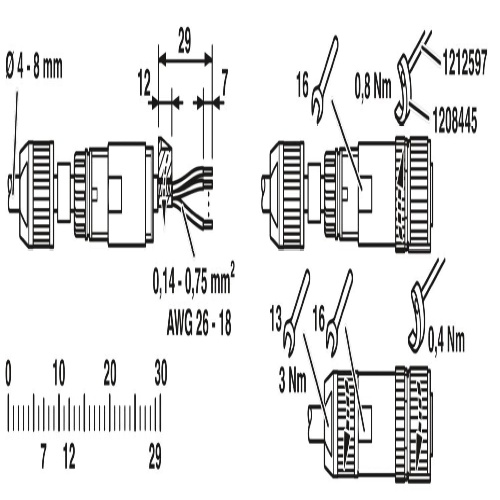

Phoenix Contact 1424664 A connector with a universal design, featuring five positions and shielding, is available in a M12 socket with a straight configuration. The connector uses a push-lock spring connection mechanism and is constructed from zinc die-cast material that has been nickel-plated for added durability, with external cables capable of ranging in diameter from 4 to 8 millimeters.
Specifications
Connector Material
Cusn
Connector protection
IP65
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Connector - Cable Side
Features
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Safely shielded: Reliable 360° shield connection even under extreme mechanical strain
