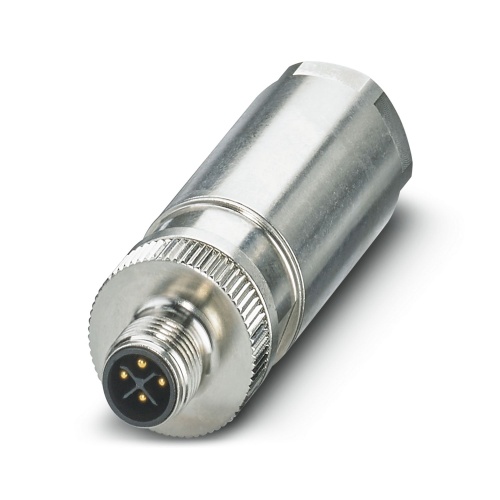

Phoenix Contact 1080220 Power connector SACC-M12MSS-3PEPL-CM SH
Normally In Stock
Code: 148888
Phoenix Contact 1080220 - Power connector - 4 Positions - 16 AWG - IP65 - Push-Lock Connection - M12
Condition: New
Usually ships Same Day or Next Day$77.06
Sale Price
$64.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1080220 The power connector is a 4-position shielded plug with an M12 straight thread and features a push-lock spring connection, made from brass nickel-plated material, featuring an external cable diameter ranging from 6 to 11 millimeters with four contact leads.
Specifications
Connector protection
IP65
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Power Connector-Cable Side
Features
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Increased protection against electric shock: PE connection to all metal components
Safely shielded: Reliable 360° shield connection even under extreme mechanical strain
