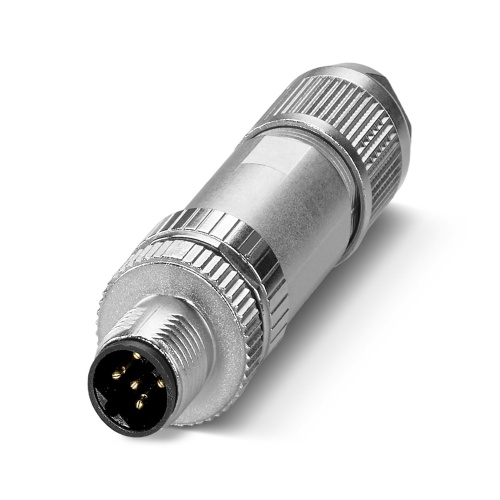

Phoenix Contact 1424695 Data connector SACC-M12MSB-3PL SH PB
Normally In Stock
Code: 148776
Phoenix Contact 1424695 - 3 Positions - CuSn - 26 AWG - IP65 - Push-Lock Connection - M12
Condition: New
Usually ships Same Day or Next Day$34.19
Sale Price
$28.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424695 The data connector features a PROFIBUS DP interface with a transmission speed of 12 Mbps and is enclosed in a 3-position shield. It has a straight M12 plug with a push-lock spring connection and can be secured using a knurl material, consisting of zinc die-cast and nickel-plated components. The external cable diameter ranges from 4 mm to 8 mm.
Specifications
Connector Material
PA 6.6
Connector Material
Cusn
Connector protection
IP65
Manufacturer
Phoenix Contact
Number of Positions
3
Component
Data
Sub Component
Cable Side
Features
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Safely shielded: Reliable 360° shield connection even under extreme mechanical strain
