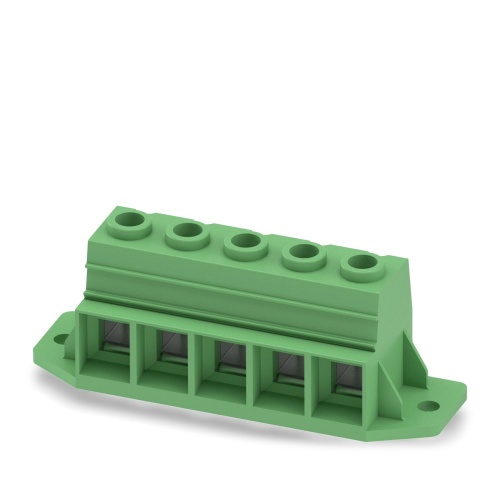

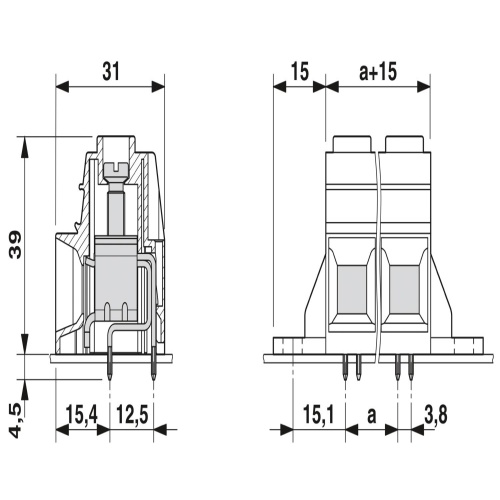

Phoenix Contact 1932520 A printed circuit board terminal is specified with a nominal current capacity of 125 A and a rated voltage of 1000 V, featuring a cross-section of 35 mm2. It has five potentials, arranged in a single row of five positions, and is part of the MKDSP 25/..-F product range. The terminal's dimensions include a pitch of 15 mm, connected via screw connection with tension sleeve using Z2L Slotted Pozidriv screws. Mounting is done through wave soldering, with the conductor and PCB connection direction set at 0 degrees. The terminal has a green color and follows a linear pin layout, where each potential has four solder pins. It comes packaged in cardboard, but should not be subjected to permanent mechanical loads.
