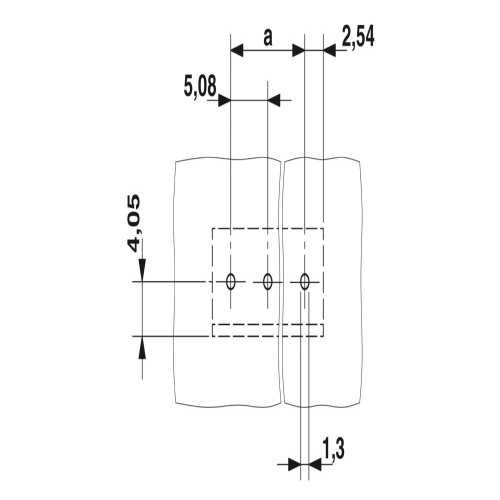

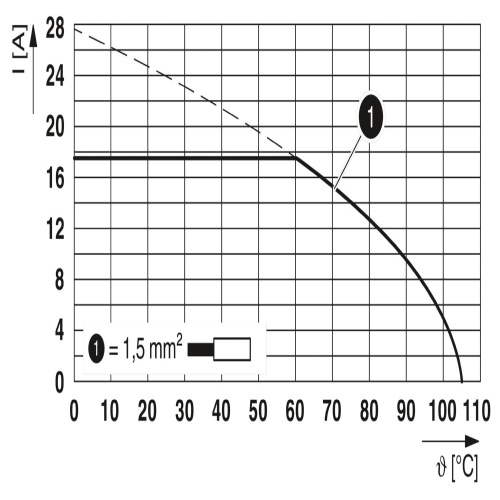

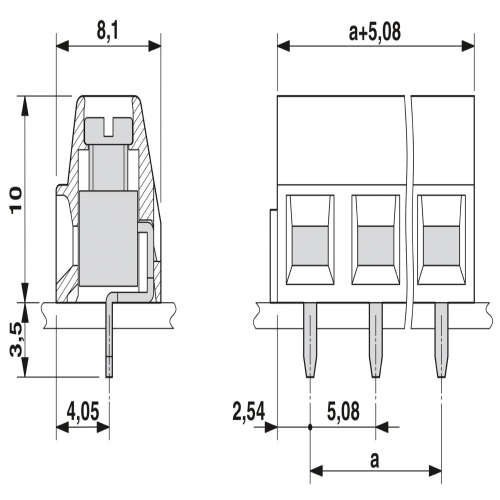

Phoenix Contact 1706754 A printed circuit board terminal has a nominal current of 17.5 A and is rated for a voltage of 400 V with an expected cross-sectional area of 1.5 mm2. The terminal features 17 separate potentials connected via one row of 17 positions, each measuring 5.08 mm apart. This type of terminal uses screw connections secured by tension sleeves with L-slotted screw heads and can be mounted through wave soldering. The pin layout is linear, with individual pins spaced 3.5 mm apart, allowing for single-pins per potential, and the entire assembly is packaged in cardboard.
