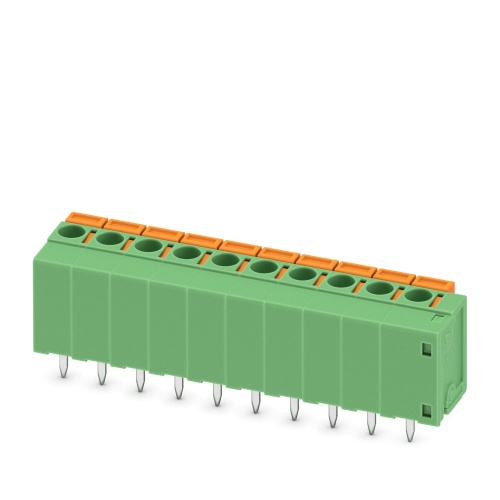

Phoenix Contact 1727511 PCB terminal block FFKDSA1/V1-10,16- 4
Normally In Stock
Code: 147914
Phoenix Contact 1727511 FFKDSA1/V1-10,16- 4 ,Copper Alloy,PA,I PCB terminal block
Condition: New
Usually ships Same Day or Next Day$91.04
Sale Price
$75.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

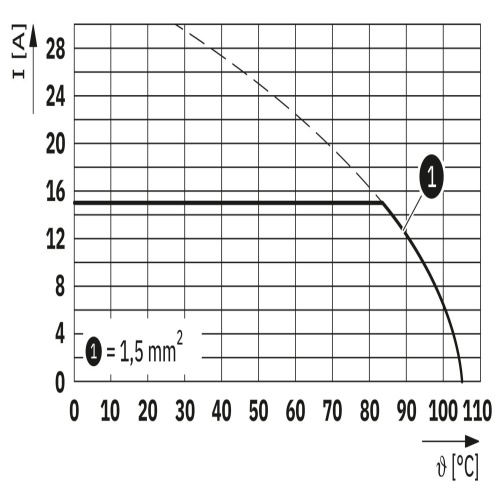

Phoenix Contact 1727511 A printed circuit board terminal features a nominal current of 15 A and is rated for a maximum voltage of 400 V. It has a cross-sectional area of 1.5 mm² and includes four potentials, arranged in a single row with four positions. The product falls within the FFKDS(A)/V1 range and has a pitch of 10.16 mm, utilizing push-in spring connections for mounting via wave soldering. The conductor-to-PCB connection direction is at a 90° angle, with two solder pins per potential, packaged in cardboard.
Specifications
Connector Amperage
15 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Number of Connections
4
Number of Positions
4
Component
PCB
Connector Voltage
250 Volt
Connector Voltage
630 Volt
Connector Voltage
400 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
Two solder pins reduce the mechanical strain on the soldering spots
The latching on the side enables various numbers of positions to be combined
Vertical connection enables multi-row arrangement on the PCB
