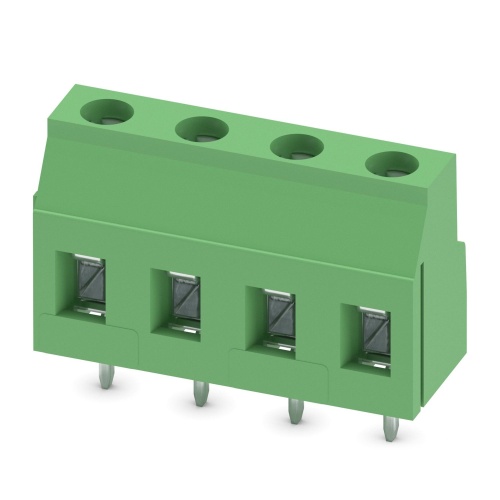

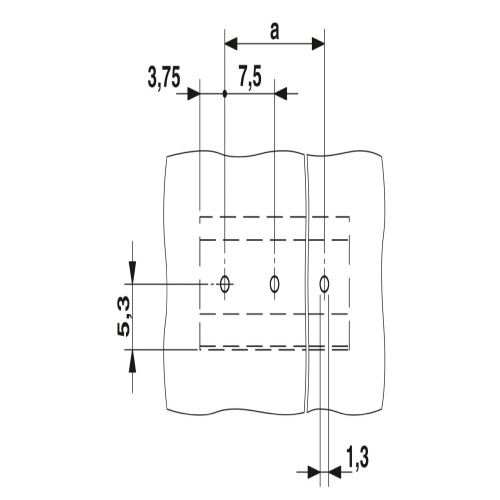

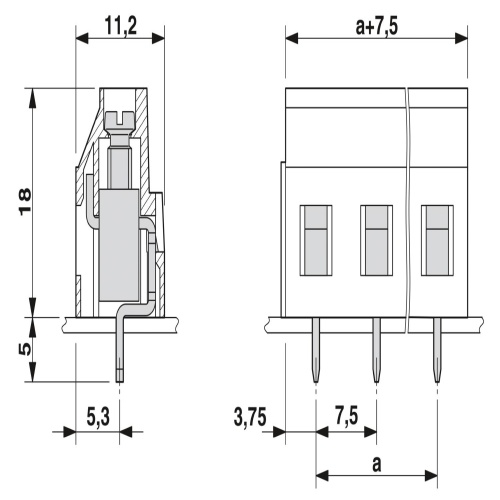

Phoenix Contact 1731132 A printed circuit board terminal has a nominal current capacity of 24 A and is rated for 630 V, with a cross-sectional area of 2.5 mm². It features four potential connections arranged in a single row of four positions, with the ability to be rearranged to create different configurations. The terminal utilizes wave soldering for mounting and has a pitch of 7.5 mm, employing screw connections with tension sleeves and L-slotted screw heads. It is available in the GMKDS 3 product range and features linear pinning, with green-colored solder pins measuring 5 mm long, each accommodating one potential connection. The terminal comes packaged in cardboard.
