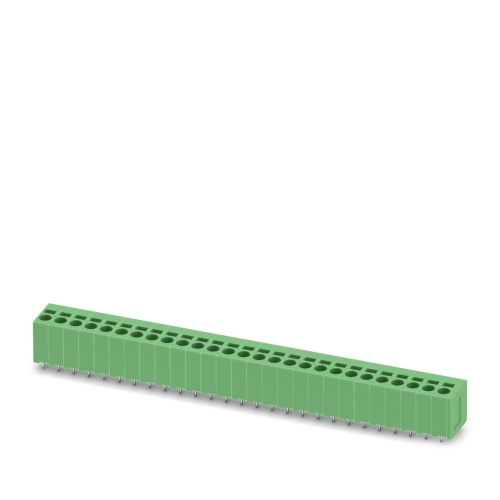

Phoenix Contact 1703528 A printed circuit board terminal has a nominal current rating of 24 A and is rated for a voltage of 400 V. It features a cross-sectional area of 2.5 mm² and includes 27 different potentials. The board has one row with 27 individual positions, each connected via push-in spring connections. Wave soldering is used for mounting, while the connection between conductors and the PCB is at a 90° angle. The terminal's color is green and features linear pinning, with each potential using two solder pins of 2.5 mm length. This product falls within the SPT 2.5/...-V range and has a pitch of 5 mm, packaged in cardboard.
