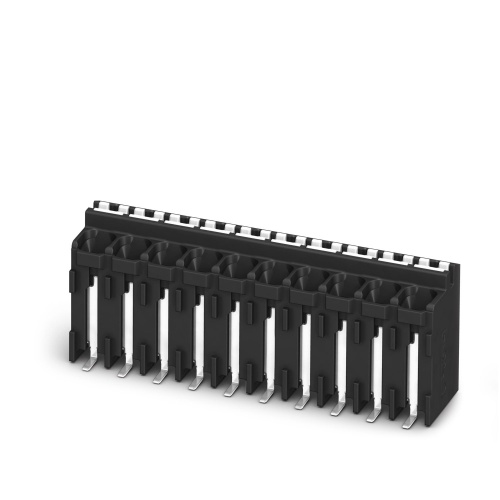

Phoenix Contact 1824158 PCB terminal block SPT-SMD 1,5/ 9-V-3,5 R72
Normally In Stock
Code: 147492
Phoenix Contact 1824158 SPT-SMD 1,5/ 9-V-3,5 R72 ,Copper Alloy,LCP,IIIa PCB terminal block
Condition: New
Usually ships Same Day or Next Day $9.36
Sale Price
$7.80
MUST BUY IN PACKS OF 200
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

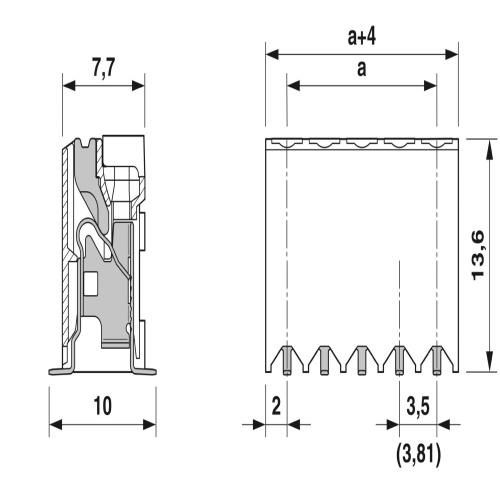

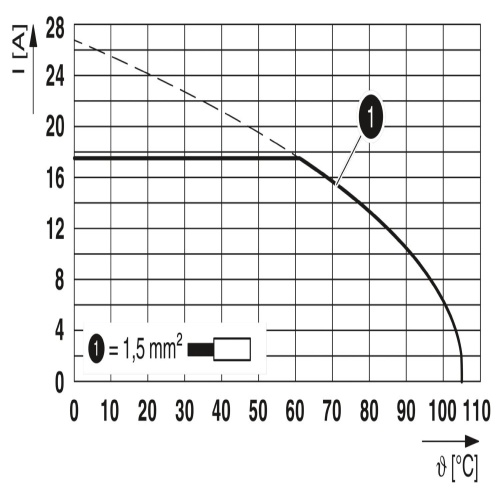

Phoenix Contact 1824158 A printed circuit board terminal has a nominal current rating of 17.5 A and is designed to handle a maximum voltage of 160 V. The cross-sectional area is 1.5 mm², indicating the size of the connection point, with nine different potentials available for use. The product falls within the SPT 1.5/..-V-SMD range, featuring a pitch of 3.5 mm and utilizing push-in spring connections for secure attachment to the circuit board.
Specifications
Connector Amperage
13.5 Amp
Connector Material
Iiia
Connector Material
LCP
Connector Voltage
2.5 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Number of Connections
9
Number of Positions
9
Component
PCB
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Designed for integration into the SMT soldering process
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
Two soldering spots per position reduce the mechanical strain on the soldering spots
