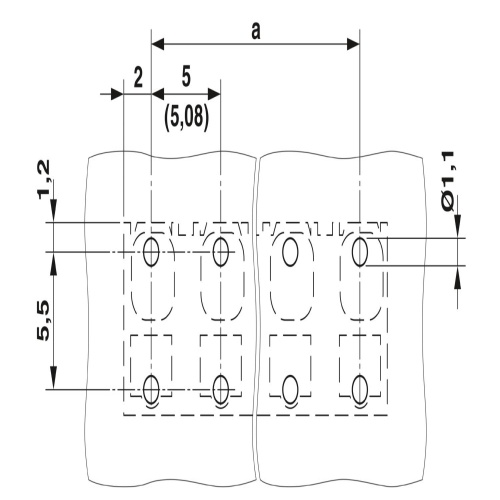

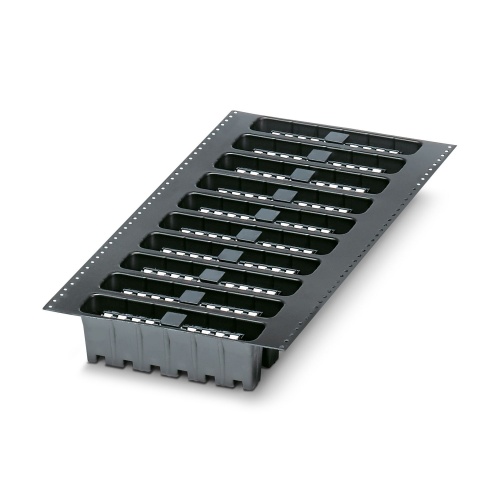

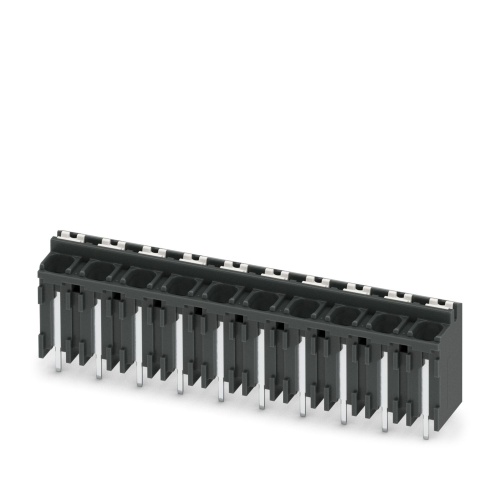

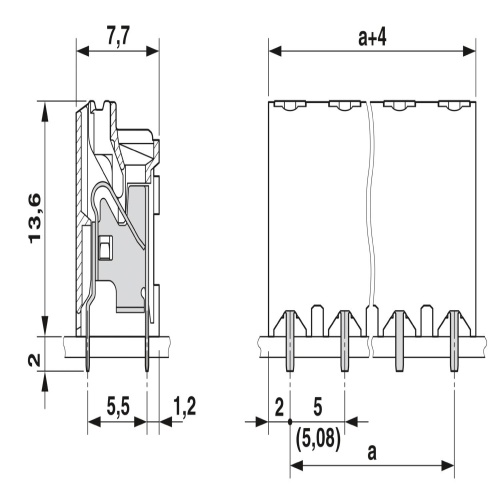

Phoenix Contact 1823609 The printed circuit board terminal features a nominal current of 17.5 A and is rated for a voltage of 320 V. It has a cross-sectional area of 1.5 mm² and supports up to 10 potentials, arranged in a single row with 10 positions per row, falling within the SPT 1,5/..-V-THR product range. The terminal's pitch is 5.08 mm and employs push-in spring connections for mounting, which can be soldered using either wave or traditional soldering methods, with the conductor connection oriented at a 90° angle to the PCB. The terminal is identified by its black color and linear pin layout, featuring solder pins that are 2 mm in length and spaced two per potential, packaged on an 88 mm wide tape.
