Phoenix Contact 1706426 PCB terminal block MK3DS 1,5/ 3-5,08-BC
Normally In Stock
Code: 146948
Phoenix Contact 1706426 MK3DS 1,5/ 3-5,08-BC PCB terminal block
Condition: New
Usually ships Same Day or Next Day $11.28
Sale Price
$9.40
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

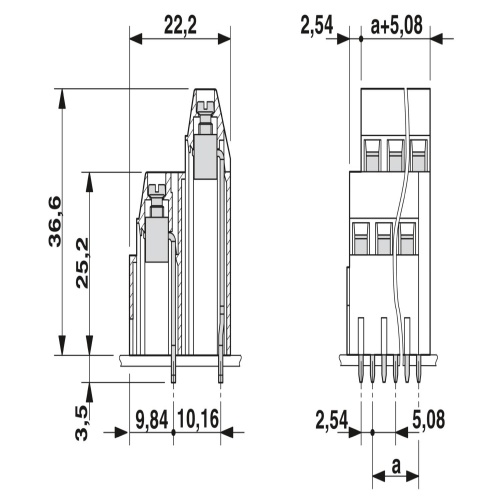

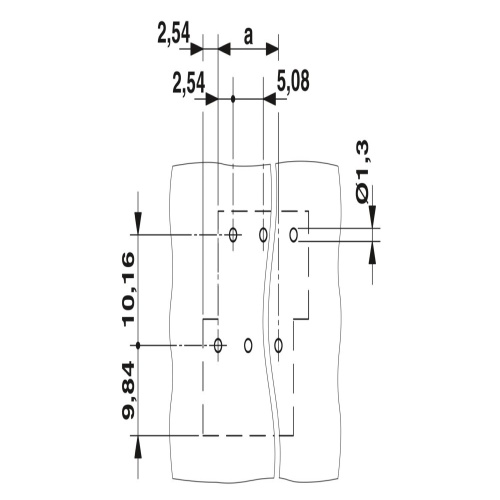

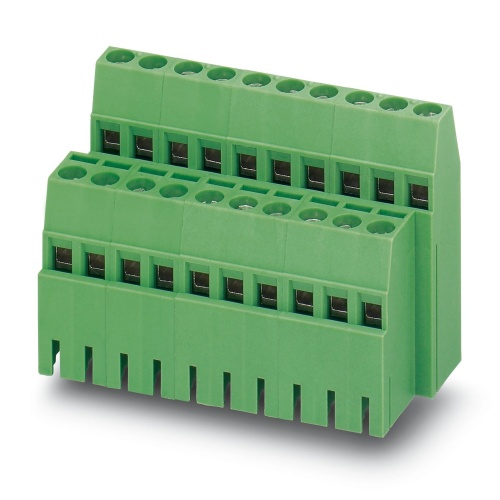

Phoenix Contact 1706426 A printed circuit board terminal with a specific configuration features three positions per row and is part of the MK3DS product range with a pitch of 5.08mm, screw head form L Slotted, and a green color, using linear pinning with solder pins measuring 3.5mm in length, packaged in cardboard.
Specifications
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Number of Positions
3
Component
PCB
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Conductor connection on several levels enables higher contact density
The latching on the side enables various numbers of positions to be combined
