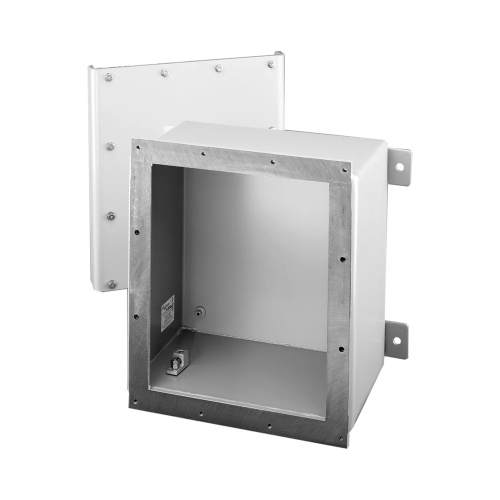

nVent Hoffman A48D3612 Steel Nema 9 Enclosure
Normally In Stock
Code: 14591
nVent Hoffman A48D3612 Enclosure Type 9 hazardous location 48"H x 36"W x 12"D Enclosure with thick gauge steel and gray powder finish inside and out over pretreated surfaces. Screw on Cover with 4 screws. Fiber gasket, mechanically attached to cover, assures dust-tight enclosure. For use in Class II Division 1 and 2 locations as defined in Article 500 of the National Electrical Code as having the presence of combustible dusts. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$18895.39
Sale Price
$15746.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A48D3612 Enclosure Type 9 hazardous location 48"H x 36"W x 12"D This nVent Hoffman Steel Nema 9 enclosure is perfect for Class II Division 1 and 2 locations (defined in Article 500 of the National Electrical Code, having the presence of combustible dusts). With a screw on cover with four screws and a fiber gasket that assures dust-tight seal, this enclosure is durable and sure to keep enclosed components safe from outer elements. The gray polyester powder finish inside and out adds simplicity to the look of this nVent Hoffman enclosure.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Depth
12"
Enclosure Interior Color
Gray
Enclosure Hazardous Classification
Class II Div 1
Enclosure Hazardous Classification
Class II Div 2
Enclosure Width
36"
Enclosure Height
48"
Enclosure Hinge Type
Stainless Steel Hinge
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Hazardous Location Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 9
Manufacturer
Hoffman
Features
Weldnuts or collar studs provided for mounting optional panel
"Heavy duty cover hinges on enclosures when ""A"" is 20.00 in. (508 mm) or more"
Fiber gasket, mechanically attached to cover, assures dust-tight enclosure
Covers are .25-in. (6-mm) thick to allow mounting of NEMA 9 pushbuttons and pilot lights, which require threaded holes (3/4-14 NPSM thread)
Ends are .38-in. (10-mm) steel plate to provide a minimum of 3.50 full threads for conduit sizes through 2.00 in. (51 mm)
Downloads
Hoffman A48D3612 UL Certification.pdfHoffman A48D3612 Spec Sheet.pdfHoffman A48D3612 Repainting Instructions.pdfHoffman A48D3612 Instruction Manual.pdfHoffman A48D3612 EU Certification.pdfHoffman A48D3612 Dimension Drawing.gifHoffman A48D3612 Declaration of Compliance.pdfHoffman A48D3612 CSA Certification.pdfHoffman A48D3612 Connection of Conduit Instructions.pdfHoffman A48D3612 CAD Drawing.zipHoffman A48D3612 3D STEP CAD.zipHoffman A48D3612 2D DXF CAD.zip
