Code: 14564

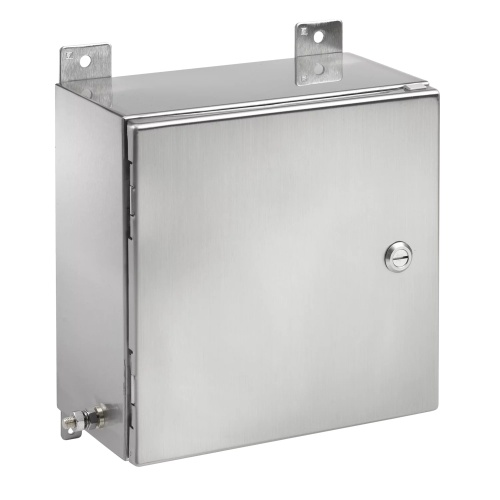

nVent Hoffman EXE30208SS61 ZONEX Hazardous Location Enclosure
nVent Hoffman EXE30208SS61 ZONEX Enclosure with 1 gland plate 30"H x 20"W x 8"D, Nema 4x Type 316 Stainless Steel, hinged with quarter-turn latches withslotted insert. Hazardous Classification Atex directive 94/9/EC Zones 1 and 2. Hardware for panel and bonding provisions included. Gland plates and panels sold separately. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
*NON-CANCELLABLE, NON-RETURNABLE*
$4671.60
Sale Price
$3893.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman EXE30208SS61 ZONEX Enclosure with 1 gland plate 30"H x 20"W x 8"D, This convenient nVent Hoffman ZONEX enclosure is certified to meet ATEX Directive 94/9/EC as well as IECEx standards for increased safety in housing electrical components in Zone 1 and Zone 2 applications. With a Type 316 stainless steel quarter-turn latch with a slotted insert and a continuous seal gasket on the door and gland plate, enclosed components will be kept safe and secure. The 10-mm brass internal/external bonding provisions, large 3-mm-thick gasketed gland plate and hardware for panel and bonding provisions make this enclosure perfect for many different types of projects and locations.
Specifications
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Latch Type
Quarter Turn
Enclosure Composition
Aluminum
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 2
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 1
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
20"
Enclosure Height
30"
Line
Zonex
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Hazardous Location Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Hardware for panel and bonding provisions included
Large 3-mm-thick, flat gasketed gland plate(s)
Continuous seal gasket on door and gland plate(s)
Operating temperature range: -40 C to +70 C standard polyurethane gasket
Type 316 stainless steel quarter-turn latch with slotted insert
10-mm brass internal/external bonding provision
Increased safety: Ex e. IECEx e certified
3-mm thick individual welded-on top and bottom wall-mounting brackets
