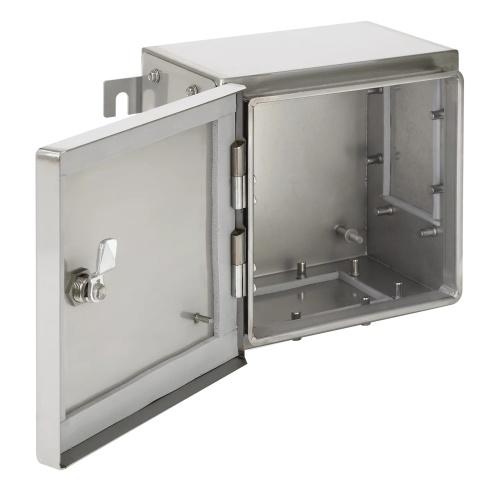

nVent Hoffman ATEX503520SS63 ZONEX Hazardous Location Enclosure
Normally In Stock
Code: 14543
nVent Hoffman ATEX503520SS63 ZONEX Enclosure with 3 gland plates 19"H x 14"W x 8"D, Nema 4x Type 316 Stainless Steel, quarter-turn latches and lift off door hinges. 3-mm double bit insert for security. Hazardous Classification Atex directive 94/9/EC Zones 1 and 2. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3652.80
Sale Price
$3044.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman ATEX503520SS63 ZONEX Enclosure with 3 gland plates 19"H x 14"W x 8"D, This nVent Hoffman ZONEX enclosure is both easy-to-use and durable. The Type 316 stainless steel quarter-turn door latching and lift-off door hinges provide ease of access to enclosed components. With a 3-mm double-bit insert, you can be sure that controls will be kept secure. Slot and through-hole side-mount hanging brackets and removable gland plates allow for flexibility.
Specifications
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
Gray
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 2
Enclosure Hazardous Classification
ATEX Directive 94-9-EC Zone 1
Enclosure Composition
Stainless Steel
Enclosure Hinge Type
Lift-Off
Enclosure Lock Type
Double-Bit
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
19"
Line
Zonex
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
14"
Component
Hazardous Location Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Removable gland plates, one or three gland plates standard
Slot and through-hole side-mount hanging brackets
Lift-off door hinges
Internal/external brass earth/ground provision
3-mm double-bit insert for security
Type 316 stainless steel quarter-turn door latching
Type 316 stainless steel external fasteners
Gray silicone high-temperature gasket on doors and gland plates, operating temperature range -55 C to +180 C
Downloads
Hoffman ATEX503520SS63 2D DXF CAD.zipHoffman ATEX503520SS63 3D STEP CAD.zipHoffman ATEX503520SS63 CAD Drawing.zipHoffman ATEX503520SS63 Certificate of Conformity.pdfHoffman ATEX503520SS63 Declaration of Compliance.pdfHoffman ATEX503520SS63 Dimension Drawing.gifHoffman ATEX503520SS63 EU Certification.pdfHoffman ATEX503520SS63 EU-Type Examination Certificate.pdfHoffman ATEX503520SS63 Instruction Manual.pdfHoffman ATEX503520SS63 Spec Sheet.pdfHoffman ATEX503520SS63 UL Certification.pdfHoffman ATEX503520SS63 User Manual.pdf
