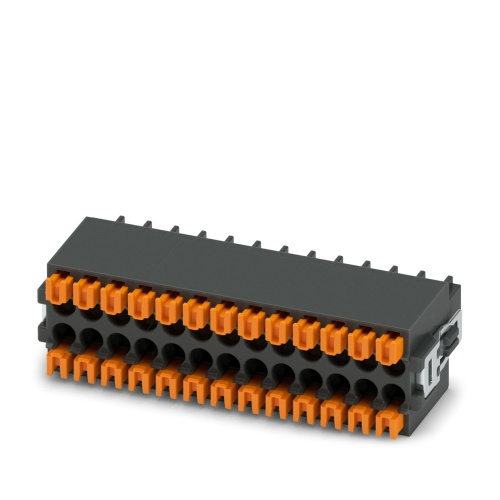

Phoenix Contact 1715746 PCB connector DFMC 0,5/13-ST-2,54-RF
Normally In Stock
Code: 145368
Phoenix Contact 1715746 DFMC 0,5/13-ST-2,54-RF ,Copper Alloy,LCP,IIIa,LCP Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $28.42
Sale Price
$23.68
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1715746 A PCB connector has a nominal cross-section of 0.5 mm2, is colored black and rated for a current of 6 A with an insulation voltage of 160 V. The contact surface is made of gold (Au) and features a socket connection type with 26 potential pins arranged in two rows, each containing 13 positions. The connections are made using push-in spring connections and the conductor meets the PCB at a 0-degree angle. This connector utilizes a COMBICON DFMC 0.5 system for plug-in functionality, secured by snap-in locking and mounted via a latching flange that is packaged in cardboard.
Specifications
Connector Amperage
6 Amp
Connector Material
Iiia
Connector Material
LCP
Connector Voltage
2.5 Kv
Connector Voltage
2.95 Kv
Connector Voltage
1.39 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Positions
13
Component
PCB
Sub Component
PCB Plug
Number of Connections
26
Connector Voltage
160 Volt
Connector Voltage
32 Volt
Features
Gold-plated contacts ensure transfer quality remains stable over the long term
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Optimized for tight installation situations: operation and conductor connection from one direction
Intuitive locking mechanism prevents accidental disconnection
