Code: 145194

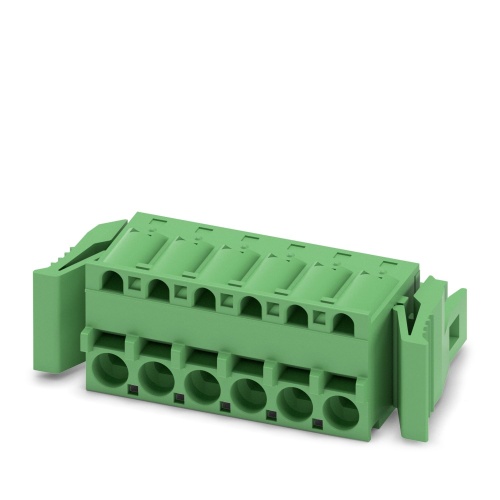

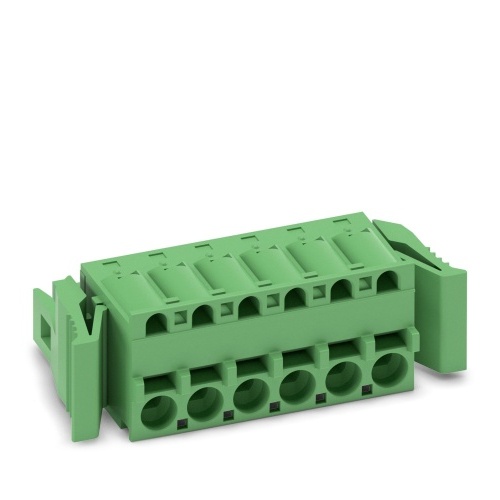

Phoenix Contact 1808608 PCB connector FKCS 2,5/ 6-ST-5,08-RF
Normally In Stock
Phoenix Contact 1808608 FKCS 2,5/ 6-ST-5,08-RF ,Copper Alloy,PA,I Printed-circuit board connector *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$7.12
Sale Price
$5.93
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1808608 The PCB connector has a nominal cross-sectional area of 2.5mm², with a green color and a maximum current rating of 12A at a rated voltage of 320V. It features a Sn contact surface and uses a push-in spring connection method, allowing for 6 connections with a pitch of 5.08mm. The connector has a COMBICON MSTB 2,5 locking system and is mounted using a latching flange on an FKCSC 2,5/..-ST-RF PCB, packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Component
PCB Connector
Number of Connections
6
Number of Positions
6
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Time saving push-in connection, tools not required
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Quick and convenient testing using integrated test option
Can be combined with the MSTB 2,5 range
Intuitive locking mechanism prevents accidental disconnection
