Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

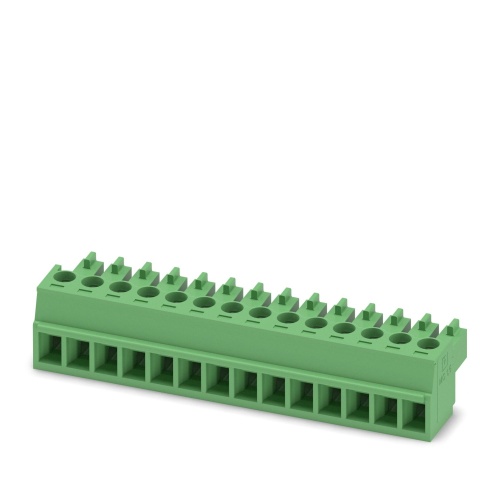

Phoenix Contact 1803691 PCB connector MC 1,5/14-ST-3,81
Normally In Stock
Code: 144932
Phoenix Contact 1803691 MC 1,5/14-ST-3,81 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $18.55
Sale Price
$15.46
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1803691 The PCB connector described has a nominal cross-sectional area of 1.5 mm² and is colored green, with an intended current rating of 8 A and a maximum voltage rating of 160 V. The contact surface is made of tin and features a socket-style connection type, accommodating 14 potentials across one row of 14 positions.
Specifications
Connector Amperage
8 Amp
Connector Voltage
2.5 Kv
Connector Voltage
2.95 Kv
Connector Voltage
1.39 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
14
Number of Positions
14
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
