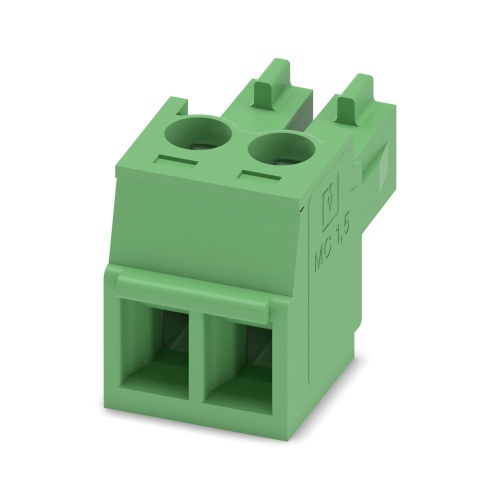

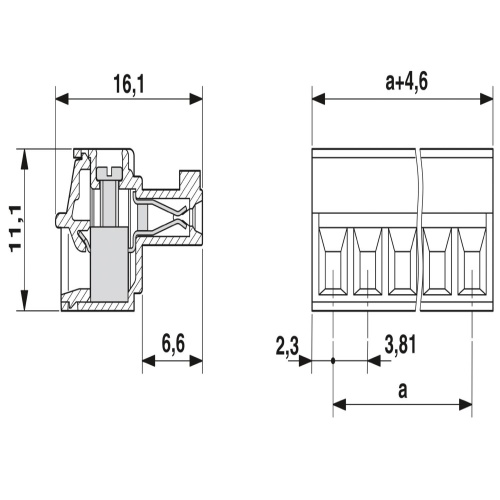

Phoenix Contact 1803578 The PCB connector features a nominal cross-sectional area of 1.5 mm2 and has a green color. It is rated for a maximum current of 8 A at a voltage of 160 V. The contact surface is made of tin and uses a socket connection type with two potential wires, one row, two positions, and two connections. This connector is part of the MC 1,5/...-ST product range and has a pitch of 3.81 mm. It connects using a screw method with a tension sleeve, L slotted screw head, and conductors connect to the PCB at a 0° angle, utilizing the COMBICON MC 1,5 plug-in system without locking or mounting requirements, packaged in cardboard.
