Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 144042

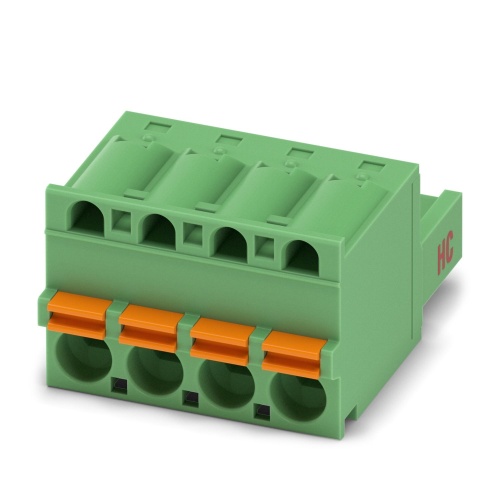

Phoenix Contact 1942390 PCB connector FKC 2,5 HC/ 4-ST-5,08
Normally In Stock
Phoenix Contact 1942390 FKC 2,5 HC/ 4-ST-5,08 ,Copper Alloy,PA,I,PBT Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $6.05
Sale Price
$5.04
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1942390 A connector with a nominal cross-section of 2.5mm² features four contacts and is colored green, capable of handling up to 16A of current at a rated voltage of 320V, utilizing a push-in spring connection system with an orientation of 0 degrees and is part of the FKC 2,5 HC product range, packaged in cardboard with no locking clip or mounting method.
Specifications
Connector Amperage
16 Amp
Connector Material
PBT
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Component
PCB Connector
Number of Connections
4
Number of Positions
4
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Optimized for tight installation situations: operation and conductor connection from one direction
Quick and convenient testing using integrated test option
Downloads
Code: 144042
Phoenix Contact 1942390 PCB connector FKC 2,5 HC/ 4-ST-5,08
$6.05
Sale Price
$5.04
MUST BUY IN PACKS OF 50
