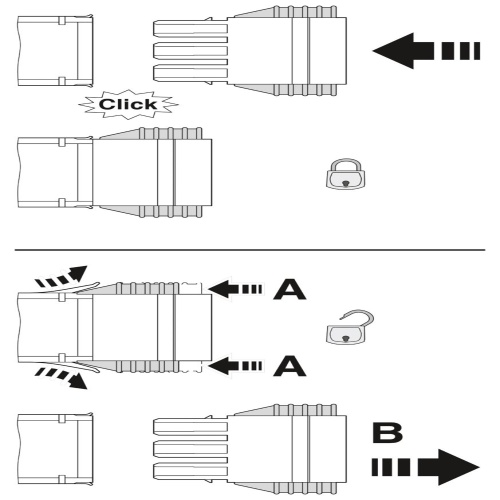

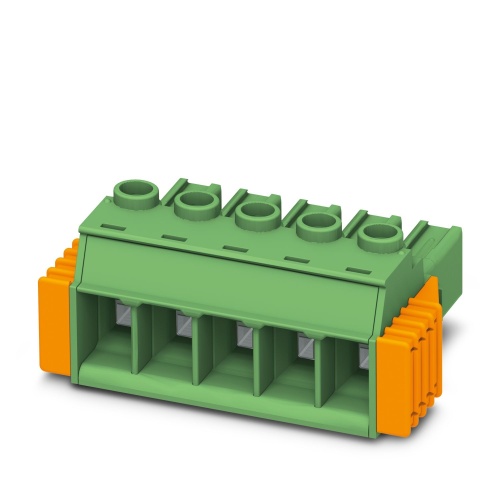

Phoenix Contact 1778133 The specified connector has a nominal cross-sectional area of 6 mm2, color-coded green, and a maximum current rating of 32 A, with a rated voltage of 1000 V. It features a contact surface made of tin and employs a socket connection method with screw attachment through a tension sleeve and an H1L Slotted Phillips recessed screw head. The connector has nine positions for nine connections, arranged in one row, and is part of the PC 5/...-STCL1 product range, featuring a pitch of 7.62 mm, requiring a click & lock latching slide mounting method, and packaged in cardboard without a locking clip, instead utilizing a plug-in system like COMBICON PC 5 with clip locking.
