Code: 14313

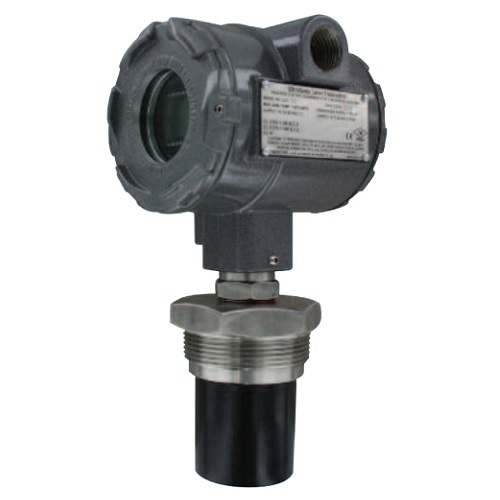

Dwyer Mercoid ULT-21 Explosion Proof Ultrasonic Level Transmitter
Normally In Stock
Dwyer Mercoid ULT-21 Explosion Proof Ultrasonic Level Transmitter for liquids. Operating range from 1-32.8' with an accuracy of within .20%. Output of 4-20 mA two wire (loop powered) and supply voltage of 18-28 VDC. Class 1 Div 1 Explosion Proof Nema 4x housing protection with 2" BSPT mounting and 1/2" NPT male electrical connection. Programing with integrated keypad. Temperature range of -40-140 F.
Condition: New
Usually ships Same Day or Next Day$2845.00
Sale Price
$2370.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer Mercoid ULT-21 Explosion Proof Ultrasonic Level Transmitter Operating range from 1-32.8' Series ULT Explosion Proof Ultrasonic Level Transmitter with Mapping Software 14.2 PSI, 32.8 ft w.c., 10 M w.c. Range 2" NPT Connection PVDF and 303SS wetted parts For liquid level measurement. Series ULT Ultrasonic Level Transmitter provides reliable, accurate, non-contact measurement of liquid levels. Ultrasonic non-contact technology offers no moving parts to wear, jam, corrode, or get coated like contact technologies. Mapping software makes effective measuring surface only a 3" diameter column. No concerns with ladders, pipes, or other tank intrusions in the remaining sound cone. Unit is FM approved explosion-proof making it ideal for use in hazardous locations. The ULT features easy programming with 6 digit LCD display and simple menu structure.
Specifications
Component
Explosion Proof Ultrasonic Level Transmitter
(Instrument-Sensor) Output Signal Type
4-20 Ma 2 Wire (Loop Powered)
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Span
1-32.8'
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Measurement Accuracy
0.20%
Manufacturer
Dwyer Instruments
(Instrument-Sensor) Hazardous Location Class
Class I Div. I Explosion Proof
(Instrument-Sensor) Temperature Range
-40°F - 140°F
