Code: 141482

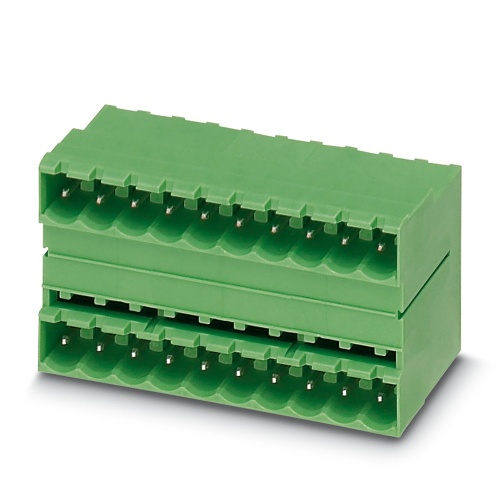

Phoenix Contact 1762512 PCB header MDSTB 2,5/17-G1-5,08
Normally In Stock
Phoenix Contact 1762512 MDSTB 2,5/17-G1-5,08 ,Copper Alloy,PA,I Feed-through header
Condition: New
Usually ships Same Day or Next Day $26.53
Sale Price
$22.11
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1762512 The specified component features 2.5mm² green PCB headers, rated for a nominal current of 10A at a voltage of up to 320V, utilizing Sn contacts and linear pinning arrangements, with 17 positions across two rows in a standard alignment, wave soldering mounting, and no locking or plugging system, packaged in cardboard and compatible with specific plug component combinations.
Specifications
Connector Amperage
10 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Component
PCB Header
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Number of Connections
34
Number of Positions
17
Connector Voltage
320 Volt
Connector Voltage
250 Volt
Connector Voltage
630 Volt
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Easy PCB replacement thanks to plug-in modules
Well-known mounting principle allows worldwide use
Conductor connection on several levels enables higher contact density
Downloads
Code: 141482
Phoenix Contact 1762512 PCB header MDSTB 2,5/17-G1-5,08
$26.53
Sale Price
$22.11
MUST BUY IN PACKS OF 50
