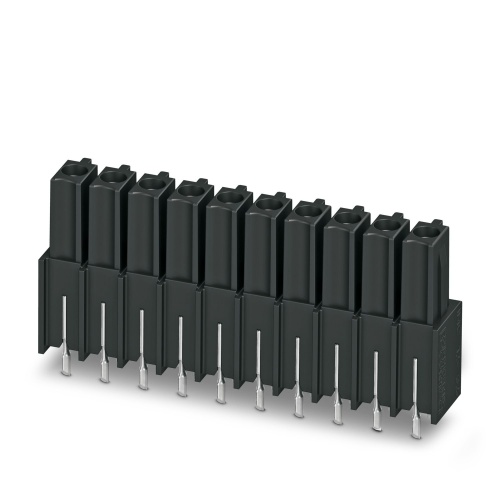

Phoenix Contact 1830786 The PCB headers feature a nominal cross-sectional area of 1.5mm² with black color, rated for a maximum current of 8A and an operating voltage range of 160V. The contact surface material is tin (Sn) and utilizes a socket connection type with nine potentials arranged in a single row of nine positions and connections, spanning the entire length of the header. This product falls under the IMCV 1,5/..-G-THR category with a pitch of 3.5mm and can be mounted using either soldering or wave soldering methods. The pin layout follows a linear design with two solder pins per potential, while it lacks standard locking mechanisms and packaging is done in cardboard.
