Code: 135105

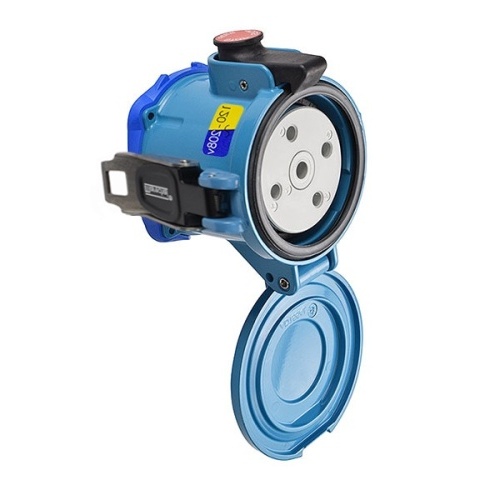

Meltric 69-94167-NC DSN150 Switch-Rated Receptacle 120/208 VAC 150A Blue Metal
Normally In Stock
Meltric 69-94167-NC Switch-Rated DSN150 Receptacle 120/208 VAC 150A Blue Metal 3P+N+G 7.5 HP,30 HP
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$1823.84
Sale Price
$1519.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 69-94167-NC Switch-Rated DSN150 Receptacle 120/208 VAC 150A Size 5 3P+N+G Blue Metal IP66,IP67 Screw Terminal Standard Pawl UL 498,UL 1682
Specifications
Receptacle Composition
Metal
Receptacle Color
Blue
Receptacle Contact Configuration
3P+N+G
Receptacle NEMA Type
Type 4X
Receptacle Amperage
150 Amp
Receptacle Wiring Connection Type
Screw Terminal
Receptacle HP Rating
7.5 HP
Receptacle HP Rating
30 HP
Receptacle IP Rating
IP66
Receptacle IP Rating
IP67
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Pawl Type
Standard Pawl
Receptacle Voltage
120/208 VAC
Receptacle Size
Size 5
Receptacle Max Wire Size
2/0 AWG
Receptacle Min Wire Size
4 AWG
Manufacturer
Meltric
Component
Receptacle
Meltric Series
DSN150 Switch-Rated
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
