Code: 134919

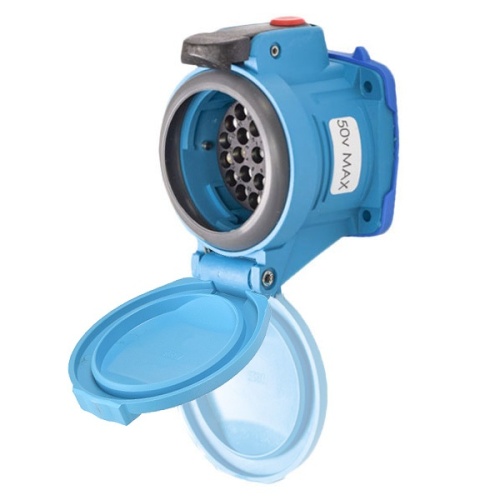

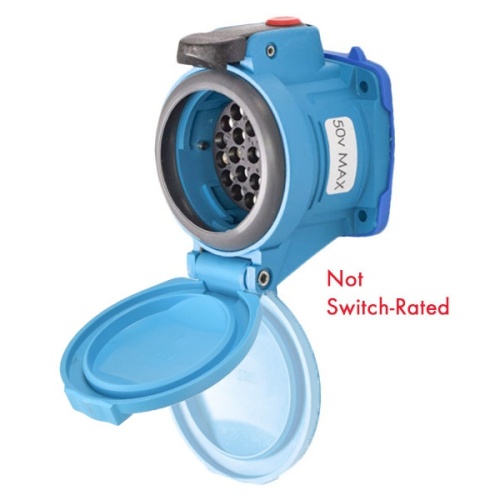

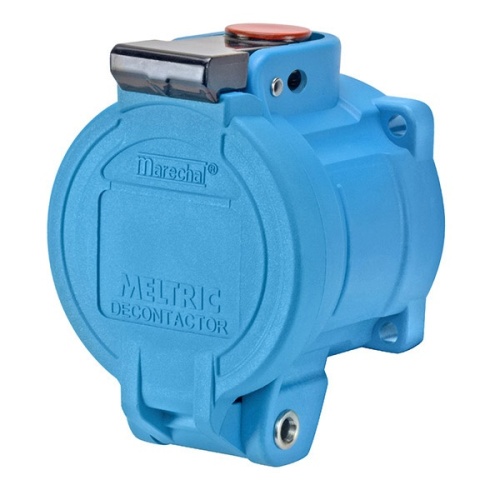

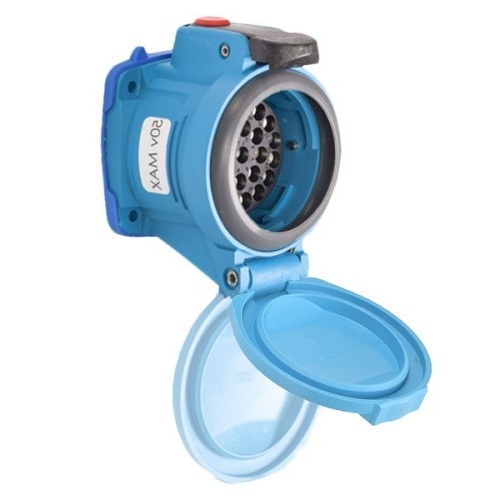

Meltric 63-B4002-375 Multipin DSN24c Receptacle 480 VAC/130 VDC 2A/7.5A Blue Poly
Normally In Stock
Meltric 63-B4002-375 Multipin DSN24c Receptacle 480 VAC/130 VDC 2A/7.5A Blue Poly 23P+G
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$420.37
Sale Price
$350.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 63-B4002-375 Multipin DSN24c Receptacle 480 VAC/130 VDC 2A/7.5A Size 2 23P+G Blue Poly IP66,IP67 Solder/Crimp Terminal Mushroom Pawl UL 498,UL 1682
Specifications
Receptacle Color
Blue
Receptacle Contact Configuration
23P+G
Receptacle Wiring Connection Type
Solder/Crimp Terminal
Receptacle Size
Size 2
Receptacle IP Rating
IP66
Receptacle IP Rating
IP67
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Composition
Poly
Receptacle Min Wire Size
18 AWG
Receptacle Pawl Type
Mushroom Pawl
Receptacle Max Wire Size
14 AWG
Receptacle Voltage
480 VAC/130 VDC
Manufacturer
Meltric
Receptacle Amperage
2 Amp/7.5 Amp
Component
Receptacle
Meltric Series
DSN24C Multipin
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
