Code: 134187

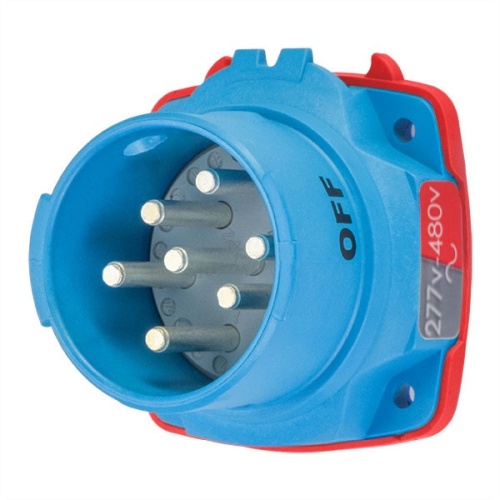

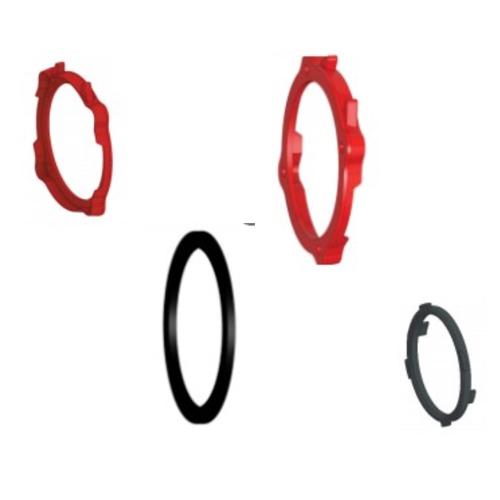

Meltric 63-38043-972-026 DSN30 Inlet Poly Blue Size .2 Type 4X Ip 69 3P+G 30A 480 Vac 60 Hz +2 Aux Flat Black Gasket
Normally In Stock
DSN30 Inlet Poly Blue Size.2 Type 4X Ip 69 3P+G 30A 480 Vac 60 Hz +2 Aux Flat Black Gasket
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$181.78
Sale Price
$151.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
DSN30 Inlet Poly Blue Size.2 Type 4X Ip 69 3P+G 30A 480 Vac 60 Hz +2 Aux Flat Black Gasket
Specifications
Receptacle Composition
Plastic
Receptacle Color
Blue
Receptacle Voltage
480 VAC
Receptacle Amperage
30 Amp
Receptacle Contact Configuration
3P+G
Receptacle NEMA Type
Type 4X
Receptacle IP Rating
IP 69
Receptacle Size
Size 2
Manufacturer
Meltric
Component
Inlet
Meltric Series
DSN30 Switch-Rated
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
