Code: 133757

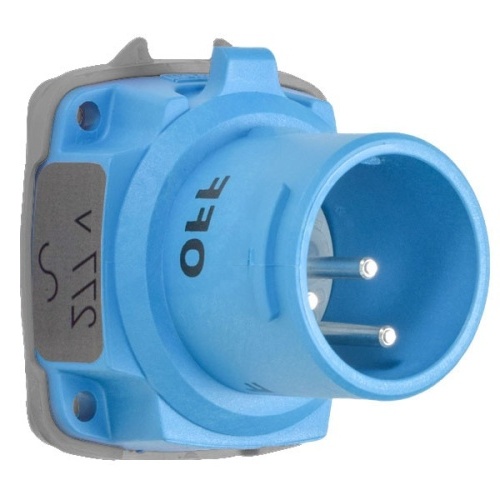

Meltric 63-18045 DSN20 Switch-Rated Inlet 277 VAC 20A Blue Poly
Normally In Stock
Meltric 63-18045 Switch-Rated DSN20 Inlet 277 VAC 20A Blue Poly 1P+N+G 2 HP
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$58.45
Sale Price
$48.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 63-18045 Switch-Rated DSN20 Inlet 277 VAC 20A Size 1 1P+N+G Blue Poly IP66,IP67,IP69 Screw Terminal UL 498,UL 1682
Specifications
Receptacle Color
Blue
Receptacle Amperage
20 Amp
Receptacle Voltage
277 VAC
Receptacle Contact Configuration
1P+N+G
Receptacle NEMA Type
Type 4X
Receptacle Wiring Connection Type
Screw Terminal
Receptacle HP Rating
2 HP
Receptacle IP Rating
IP66
Receptacle IP Rating
IP67
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Size
Size 1
Receptacle Composition
Poly
Receptacle Min Wire Size
14 AWG
Receptacle IP Rating
IP69
Receptacle Max Wire Size
12 AWG
Manufacturer
Meltric
Component
Inlet
Meltric Series
DSN20 Switch-Rated
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
