Code: 1337

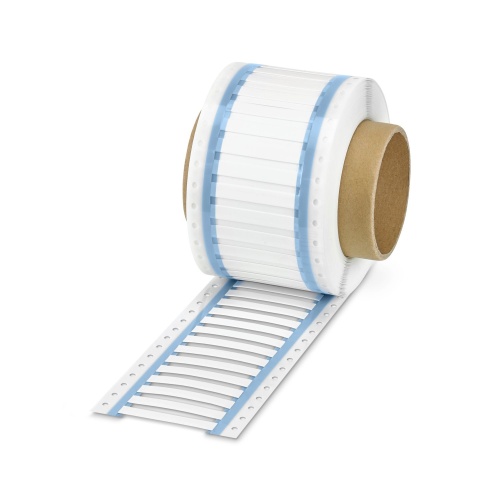

Phoenix Contact 0800385 Shrink sleeve WMS 4,8 (60X9)RL
Normally In Stock
Phoenix Contact WMS 4, 8 (60X9)RL White Marker for THERMOARK Roll Printer, No perforations/1 label per sleeve, 1000 labels on 1000 sleeves, white, labeling field: 60 x 9 mm, accepts up to 4.8 mm diameter conductor.
Condition: New
Usually ships Same Day or Next Day$561.30
Sale Price
$467.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800385 A shrink sleeve label for roll application can be labeled with various Thermomark products, including the THERMOMARK E.300 (D)/600 (D), Rollmaster 300/600, and ROLL X1 series, among others. These labels have a specified cable diameter range of 1.6 to 4.8 mm and are designed for unperforated mounting on a slide-on system. The individual label sheets come in quantities of 1000, with a text field height of 9 mm and width of 60 mm.
Specifications
Label Color
White
Label Preforations
No Preforations
Marking Color
White
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
9 mm
Manufacturer
Phoenix Contact
MTW Wire Gauge
10-12 Gauge MTW Wire
THHN Wire Gauge
10 Gauge THHN Wire
Marking Lettering Field Size
60 mm X 9 mm
Component
Wire Heatshrink Label
Features
Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
