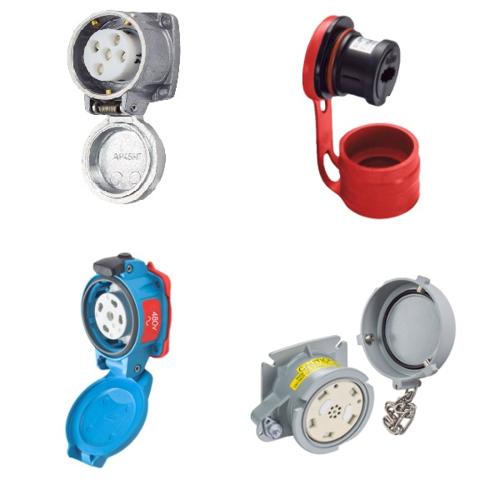

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 133634
Meltric 63-14145-K07-843 DSN20 Receptacle Poly Blue Size .1 Type 4X Ip 69 1P+N+G 20A 125 Vac 60 Hz Spare Position Padlock Pawl
Normally In Stock
DSN20 Receptacle Poly Blue Size.1 Type 4X Ip 69 1P+N+G 20A 125 Vac 60 Hz Spare Position Padlock Pawl
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$118.18
Sale Price
$98.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
DSN20 Receptacle Poly Blue Size.1 Type 4X Ip 69 1P+N+G 20A 125 Vac 60 Hz Spare Position Padlock Pawl
Specifications
Receptacle Composition
Plastic
Receptacle Color
Blue
Receptacle Amperage
20 Amp
Receptacle Contact Configuration
1P+N+G
Receptacle Voltage
125 VAC
Receptacle NEMA Type
Type 4X
Receptacle IP Rating
IP 69
Receptacle Size
Size 1
Manufacturer
Meltric
Component
Receptacle
Meltric Series
DSN20 Switch-Rated
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
