Phoenix Contact 0800400 Shrink sleeve WMS 4,8 (60X9)R YE
Normally In Stock
Code: 1336
Phoenix Contact WMS 4, 8 (60X9)R YE Yellow Marker for THERMOARK Roll Printer, No perforations/1 label per sleeve, 250 labels on 250 sleeves, white, labeling field: 60 x 9 mm, accepts up to 4.8 mm diameter conductor. *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$206.23
Sale Price
$171.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

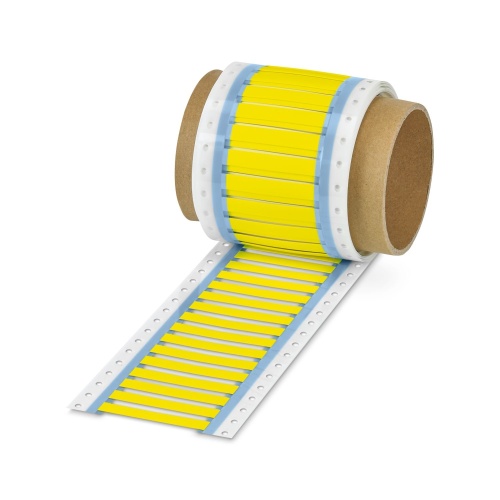

Phoenix Contact 0800400 A shrink sleeve is a roll of yellow label material that can be personalized with various THERMOMARK thermal printer models, including the ROLLMASTER and ROLL series. The cable diameter range spans from 1.6 to 4.8 millimeters, and the labels are unperforated with a slide-on mounting type. Each package contains 250 individual labels featuring a text field height of 9 millimeters and a width of 60 millimeters.
Specifications
Label Color
Yellow
Label Preforations
No Preforations
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Color
Yellow
Marking Width
9 mm
Manufacturer
Phoenix Contact
MTW Wire Gauge
10-12 Gauge MTW Wire
THHN Wire Gauge
10 Gauge THHN Wire
Marking Lettering Field Size
60 mm X 9 mm
Component
Wire Heatshrink Label
Features

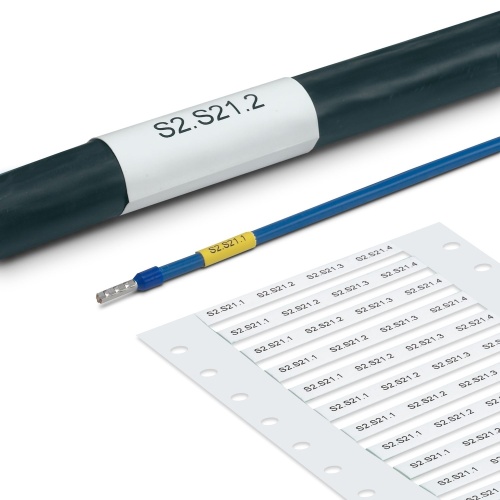

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects

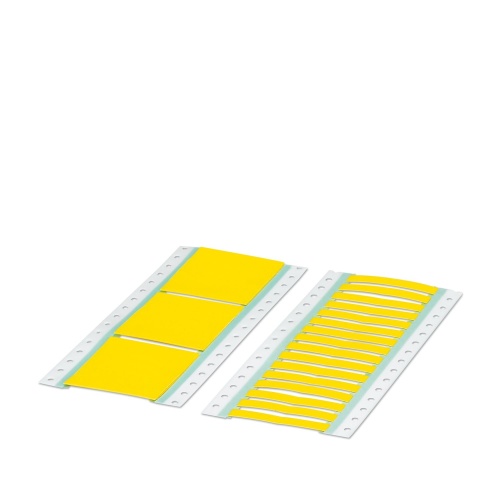

Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1

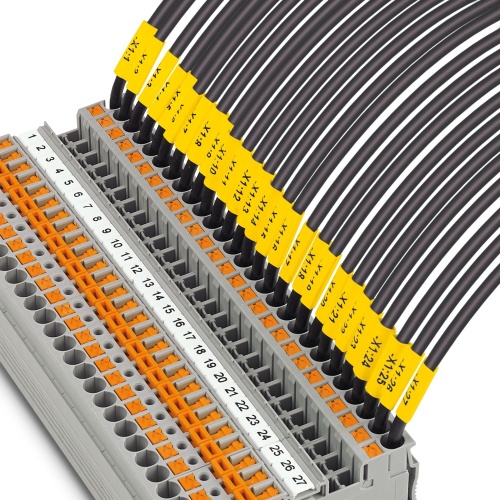

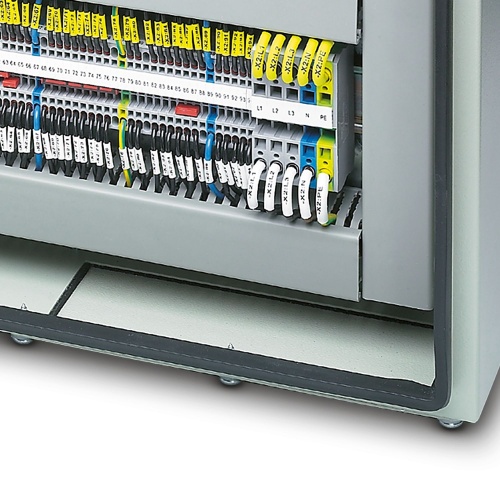

Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
