Code: 1335

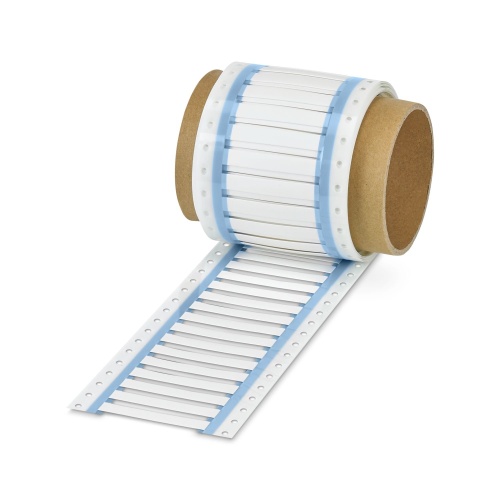

Phoenix Contact 0800366 Shrink sleeve WMS 4,8 (60X9)R
Normally In Stock
Phoenix Contact WMS 4, 8 (60X9)R White Marker for THERMOARK Roll Printer, No perforations/1 label per sleeve, 250 labels on 250 sleeves, white, labeling field: 60 x 9 mm, accepts up to 4.8 mm diameter conductor.
Condition: New
Usually ships Same Day or Next Day$206.23
Sale Price
$171.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800366 A shrink sleeve that can be labeled with various brands including THERMOMARK, is available in roll form and comes in different configurations such as Rollmaster 300/600, Roll X1, and W. The sleeves have a cable diameter range of 1.6 to 4.8 mm and are unperforated for mounting purposes that require a slide-on application, featuring a text field with dimensions of 9 mm height and 60 mm width, accommodating up to 250 individual labels.
Specifications
Label Color
White
Label Preforations
No Preforations
Marking Color
White
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
9 mm
Manufacturer
Phoenix Contact
MTW Wire Gauge
10-12 Gauge MTW Wire
THHN Wire Gauge
10 Gauge THHN Wire
Marking Lettering Field Size
60 mm X 9 mm
Component
Wire Heatshrink Label
Features

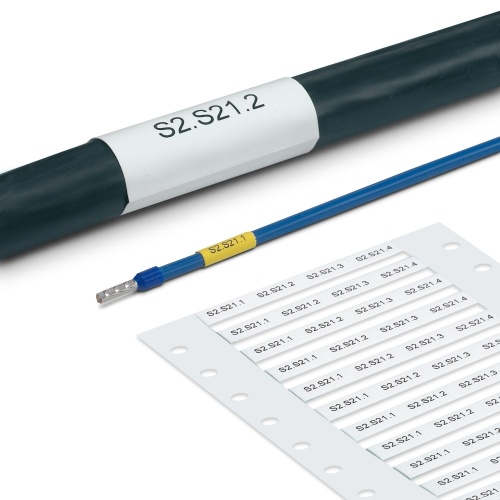

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1

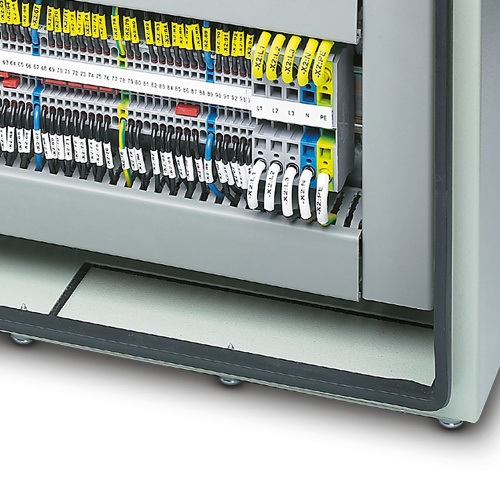

Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
