Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 0800373 Shrink sleeve WMS 2,4 (30X4)R
Normally In Stock
Code: 1318
Phoenix Contact WMS 2, 4 (30X4)R White Marker for THERMOARK Roll Printer, 1 perforation/2 labels per sleeve, 500 labels on 250 sleeves, white, labeling field: 30 x 4 mm, accepts up to 2.4 mm diameter conductor. 18-24 gauge MTW (16-24 THHN)
Condition: New
Usually ships Same Day or Next Day$203.36
Sale Price
$169.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

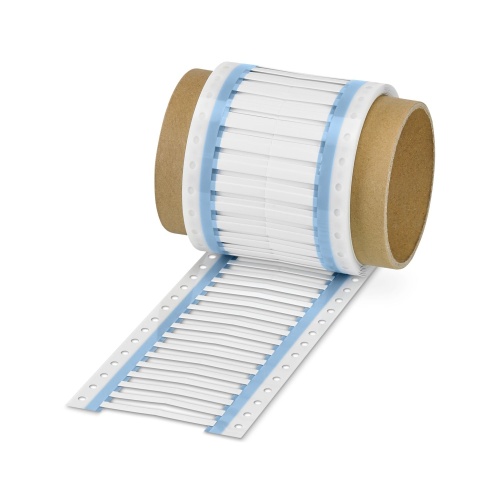

Phoenix Contact 0800373 A shrink sleeve roll in white and unlabeled can be customized with various THERMOMARK labels such as the ROLLMASTER 300/600, ROLL X1, or W. The cable diameter range is between 0.8 and 2.4 millimeters, and the mounting type is slide-on. Each label includes a text field that measures 30mm in width and 4mm in height, accommodating up to 500 individual labels on each roll.
Specifications
Label Color
White
Label Preforations
1 Preforation
Marking Color
White
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
4 mm
Component
Wire Heat Shrink Label
Manufacturer
Phoenix Contact
MTW Wire Gauge
18-24 Gauge MTW Wire
THHN Wire Gauge
16-24 Gauge THHN Wire
Marking Lettering Field Size
30 mm X 4 mm
Features

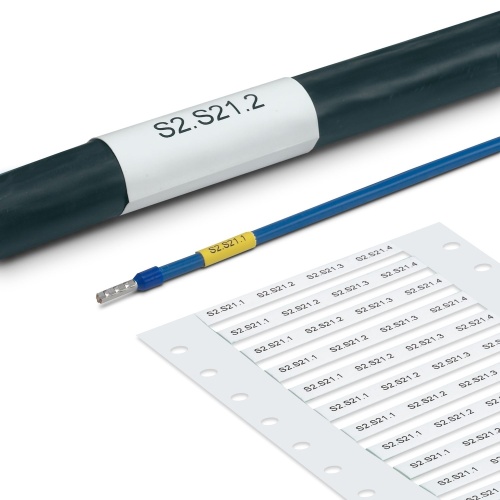

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects

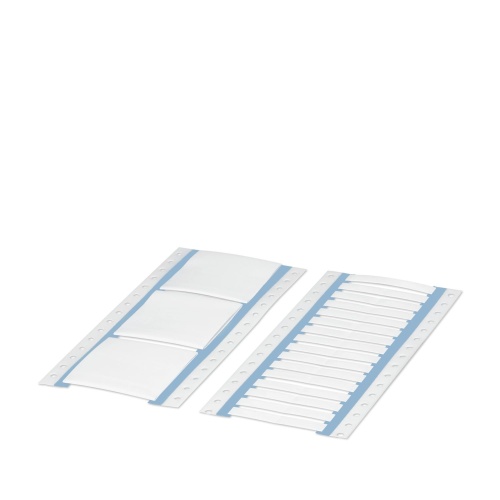

Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1

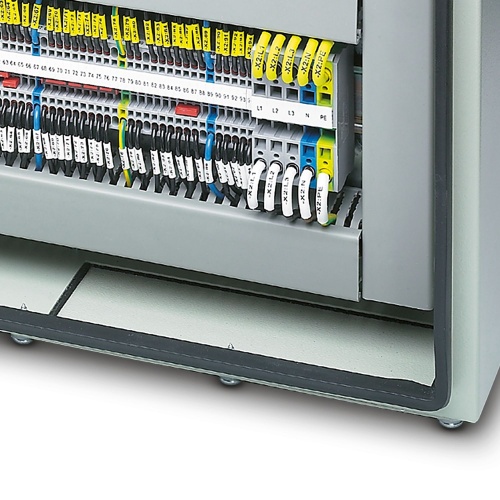

Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
