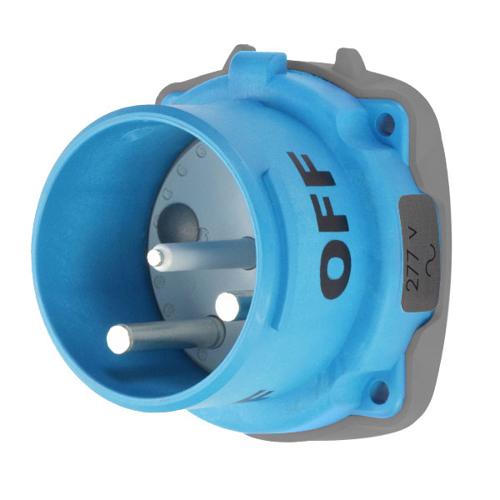

Meltric 33-68245-C-K04 Switch-Rated DS100C Inlet 277 VAC 100A Blue Poly
Normally In Stock
Code: 130912
Meltric 33-68245-C-K04 Switch-Rated DS100C Inlet 277 VAC 100A Blue Poly 1P+N+G 15 HP
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$444.40
Sale Price
$370.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 33-68245-C-K04 Switch-Rated DS100C Inlet 277 VAC 100A Size 4 1P+N+G Blue Poly IP54 Screw Terminal UL 498,UL 1682
Specifications
Receptacle Color
Blue
Receptacle Voltage
277 VAC
Receptacle Contact Configuration
1P+N+G
Receptacle Amperage
100 Amp
Receptacle NEMA Type
Type 3R
Receptacle Wiring Connection Type
Screw Terminal
Receptacle HP Rating
15 HP
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Composition
Poly
Receptacle IP Rating
IP54
Receptacle Min Wire Size
10 AWG
Receptacle Size
Size 4
Receptacle Max Wire Size
2 AWG
Manufacturer
Meltric
Component
Inlet
Meltric Series
DS100C Switch-Rated
Features
Locking Pawl Class I Division 2 and Class I Zone 2 hazardous location ratings are based on using the pawl to lock devices in the mated position so that all sources of power to the device can be turned off before the device can be disconnected
Silver-Nickel Contacts Silver-nickel contact material provides superior conductivity, durability and corrosion resistance.
Lid When closed, the lid maintains Type 4X protection for the receptacle after removal of the plug
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance.
