Code: 12929

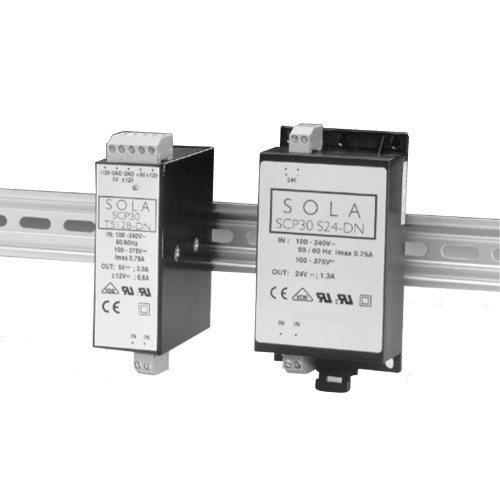

Sola SCP30S12-DN Power Supply Low Profile 12V 2.5A
Sola SCP 30S12-DN. 12V volt DC Low Profile Power Supply 85-Vac volt input or (100-375vdc input) and 12 Volt DC output. 2.5A 30 watt Power Supply (4.72"Height x 2.55"Width x 1.29"Depth).
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Replacement Products
Description
Sola SCP 30S12-DN. 12V volt DC Low Profile Power Supply 85-264 Vac input or (100-375vdc input) and 12 Volt DC output. 2.5A 30 watt Power Supply (4.72"Height x 2.55"Width x 1.29"Depth). Wide temperature range of -13 degrees F to 149 degrees F. Din Rail Mount. The SCP compact series are rugged power supplies with easy access terminations and IP20 protection.
Specifications
Power Supply Type
Switching
Power Supply Voltage Input
120 VAC
Power Supply Voltage Input
240 VAC
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
12 VDC
Power Supply Housing
Enclosed
Component
Power Supply
Line
SCP Series
Manufacturer
Sola
Power Supply Amperage Output Range
0-5 Amp
Power Supply Watt
30 Watt
Features
International approvals for global use
DIN Rail or Chassis Mount
Rugged, encapsulated design to resist environment
IP20 protection
Many output voltages, 3.3-48 Volts
single, dual, triple
Five year limited warranty
