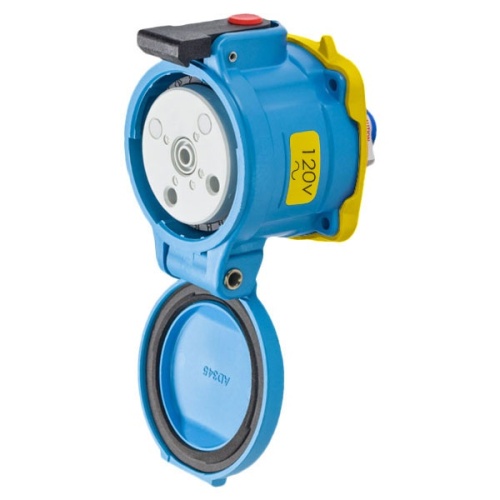

Meltric 31-14235-K16 Standard Duty DR30 Receptacle 120 VAC 30A Blue Poly
Normally In Stock
Code: 128927
Meltric 31-14235-K16 Standard Duty DR30 Receptacle 120 VAC 30A Blue Poly 1P+N+G
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$297.49
Sale Price
$247.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 31-14235-K16 Standard Duty DR30 Receptacle 120 VAC 30A Size 2 1P+N+G Blue Poly IP55 Screw Terminal Standard Pawl UL 498,UL 1682
Specifications
Receptacle Color
Blue
Receptacle Amperage
30 Amp
Receptacle Contact Configuration
1P+N+G
Receptacle Voltage
120 VAC
Receptacle NEMA Type
Type 3R
Receptacle Wiring Connection Type
Screw Terminal
Receptacle Size
Size 2
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Pawl Type
Standard Pawl
Receptacle Composition
Poly
Receptacle Min Wire Size
14 AWG
Receptacle Max Wire Size
8 AWG
Receptacle IP Rating
IP55
Manufacturer
Meltric
Component
Receptacle
Meltric Series
DR30 Standard Duty
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 3R or Type 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence. See pg. 8
