Code: 12768

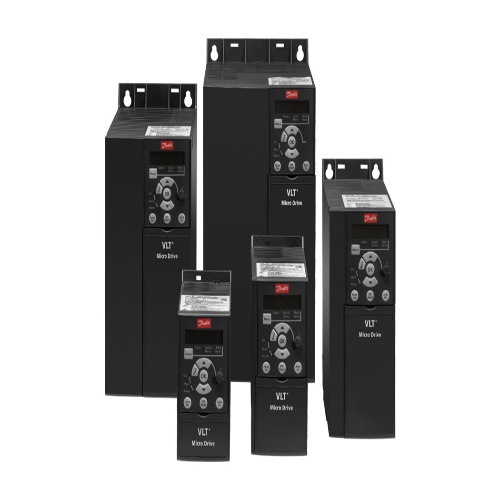

Danfoss 132F0016 VFD Micro Drive 220V 5HP
Normally In Stock
Danfoss 132F0016 Micro drive with IP20 enxlosure. Nema 1 or IP21 optional. . 5 HP three phase Variable Frequency Drive. 220-240 volt,15.2A with M3 frame size of 9.41"H x 3.54"W x 7.63"D. With built in brake chopper. 2 Analog inputs,1 Analog output,5 Digital inputs,1 Pulse input,1 Thremistor input,1 relay 240 VAC 2A. DOES NOT INCLUDE KEYPAD. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships in 7 days.$1202.56
Sale Price
$1002.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Danfoss 132F0016 Micro drive. DOES NOT INCLUDE THE CONTROL PANEL.Must be purchsed seperately. See RELATED PRODUCTS BELOW. With built in brake chopper. 2 Analog inputs,1 Analog output,5 Digital inputs,1 Pulse input,1 Thremistor input,1 relay 240 VAC 2A. Electronic thermal motor protection against overload. Temperature monitoring of the heat sink protects the drive from overheating. Plug and play with smart logic controller monitors any parameter. Optimal heat dissipation for longer life.
Specifications
Drive Type
Micro Drive
VFD Control Panel
Sold Separately
VFD Torque
Variable Torque
VFD Application
Centrifugal Pump
VFD Application
Fan
VFD Application
Blower
VFD Horsepower Output
5 HP
VFD Amperage Output
15.2 Amp
VFD Frame Type
M3
Manufacturer
Danfoss
VFD Input Voltage
240 Volt Three Phase
VFD Output Voltage
240 Volt Three Phase
VFD NEMA-IP Rating
Chassis Protected IP20
VFD Line
132F
Features
NB: Last time buy June 30, 2026
VLT® Micro Drive FC-51
(P3K7) 3.7 KW / 5.0 HP Three phase
200 - 240 VAC (E20) IP20 / Chassis
(H3) RFI Class A1/B (C1)
Brake chopper
No Loc. Cont. Panel
Coated PCB No Mains Option
M3-FRAME
Other options according to Model code
The VLT® Micro Drive is a general-purpose drive that can control ACmotors up to 22
0 kW
It is a small drive with maximum strength and reliability
The VLT® Micro Drive is manufactured with respect for theenvironment, and it complies with the RoHS Directive
Note: Order the LCP display separately as an accessory
Downloads
Danfoss 132F0016 CAD Drawing.dxfDanfoss 132F0016 Farme Diagrams.pdfDanfoss 132F0016 Installation Guide.pdfDanfoss 132F0016 Micro General Specs.pdfDanfoss 132F0016 Programming Guide.pdfDanfoss 132F0016 Spec Sheet.pdfDanfoss 132F0016 User Manual.pdfDanfoss 132F0016 VLT Micro Drive FC 51 Operating Instructions.pdfDanfoss 132F0016 VLT Micro Drive Overview.pdfDanfoss 132F0016 VLT Micro Drive Programming Guide.pdfDanfoss 132F0016 VLT Micro Drive Quick Guide.pdfInformational Sheet.pdf
