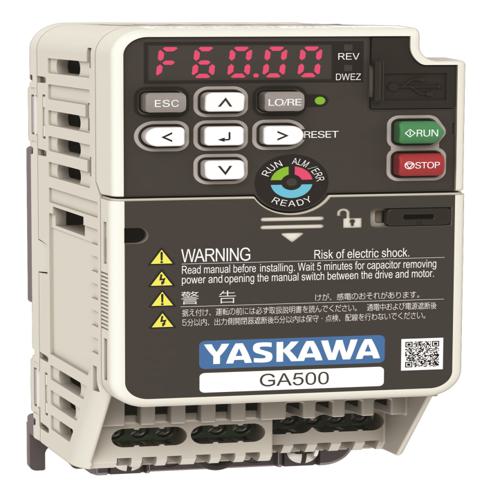

Yaskawa GA50U4002EBA GA500 Microdrive with Built-In EMC
Normally In Stock
Code: 127676
Yaskawa GA50U4002EBA 480 Volt Three Phase 2.1 Amp 1 HP Microdrive *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships Same Day or Next Day$874.16
Sale Price
$728.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The GA500 Industrial AC Microdrive is engineered to help you easily handle nearly any application. Sustainability, flexibility, and ease of use are all designed into the drive, helping you make complicated tasks simple. Offering intuitive interaction and world-class quality, the GA500 is the drive you can count on for constant, high quality performance.
Specifications
VFD Torque
Variable Torque
VFD Application
Centrifugal Pump
VFD Application
Fan
VFD Application
Blower
VFD Horsepower Output
1 HP
VFD Amperage Output
2.1 Amp
VFD Frame Type
GA500
Manufacturer
Yaskawa
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD Line
CIMR-GA50
Features
No power programming
Intuitive keypad
Conformal coated (IEC 60721-3-3: 3C2, 3S2)
Up to 30% smaller than the competition
Current vector control, open loop
Induction motor (IM), permanent magnet motor (PM), or synchronous reluctance motor operation
SIL3 (IEC 62061), PLe (ISO 13849-1) safety ratings
Embedded Modbus communication
Wide variety of communication options
Variety of mounting methods (standard, IP20/UL Type 1, side-by-side, external heatsink, DIN rail)
Embedded 24 Vdc power supply
Maintenance monitors
Cooling fan replacement without tools
Optional LCD or Bluetooth keypad
Global certifications (CE, UL, cUL, TUV, RCM, CSA)
Short Circuit Current Rating (SCCR): 100 kA rms symmetrical
Common programming with all other drives
Downloads
GA500 drive standard connection diagram.pdfGA500 Finless-Type Installation & Primary Operation.pdfGA500 Maintenance & Troubleshooting Manual.pdfGA500 Manual Supplement.pdfGA500 Selection Guide.pdfGA500 Versatile Compact AC Drive Installation & Primary Operation.pdfProduct Transition Guide V100 to GA500.pdfProgramming Manual.pdf
