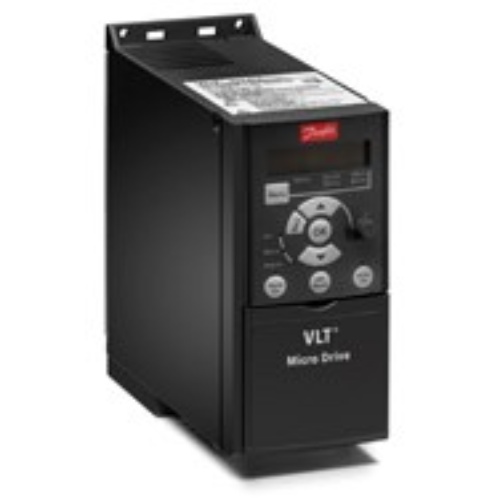

Danfoss 132F0005 VFD Micro Drive 220V 2HP
Normally In Stock
Code: 12761
Danfoss 132F0005 Micro drive with IP20 enxlosure. Nema 1 or IP21 optional. . 2 HP single phase Variable Frequency Drive. 220-440 volt,6.8A with M2 frame size of 6.92"H x 2.95"W x 6.61"D. With built in brake chopper. 2 Analog inputs,1 Analog output,5 Digital inputs,1 Pulse input,1 Thremistor input,1 relay 240 VAC 2A. DOES NOT INCLUDE THE CONTROL PANEL. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships in 7 days.$708.25
Sale Price
$590.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Danfoss 132F0005 Micro drive. DOES NOT INCLUDE THE CONTROL PANEL.Must be purchsed seperately. See RELATED PRODUCTS BELOW. With built in brake chopper. 2 Analog inputs,1 Analog output,5 Digital inputs,1 Pulse input,1 Thremistor input,1 relay 240 VAC 2A. Electronic thermal motor protection against overload. Temperature monitoring of the heat sink protects the drive from overheating. Plug and play with smart logic controller monitors any parameter. Optimal heat dissipation for longer life.
Specifications
Drive Type
Micro Drive
VFD Control Panel
Sold Separately
VFD Torque
Variable Torque
VFD Application
Centrifugal Pump
VFD Application
Fan
VFD Application
Blower
VFD Horsepower Output
2 HP
VFD Amperage Output
6.8 Amp
VFD Frame Type
M2
Manufacturer
Danfoss
VFD Input Voltage
240 Volt Single Phase
VFD Output Voltage
240 Volt Single Phase
VFD NEMA-IP Rating
Chassis Protected IP20
VFD Line
132F
Features
NB: Last time buy June 30, 2026
VLT® Micro Drive FC-51
(P1K5) 1.5 KW / 2.0 HP Single phase
200 - 240 VAC (E20) IP20 / Chassis
(H3) RFI Class A1/B (C1)
Brake chopper
No Loc. Cont. Panel
Coated PCB No Mains Option
M2-FRAME
Other options according to Model code
The VLT® Micro Drive is a general-purpose drive that can control ACmotors up to 22
0 kW
It is a small drive with maximum strength and reliability
The VLT® Micro Drive is manufactured with respect for theenvironment, and it complies with the RoHS Directive
Note: Order the LCP display separately as an accessory
Downloads
Danfoss 132F0005 CAD Drawing.dxfDanfoss 132F0005 Frame Diagrams.pdfDanfoss 132F0005 Installation Guide.pdfDanfoss 132F0005 Micro General Specs.pdfDanfoss 132F0005 Programming Guide.pdfDanfoss 132F0005 Spec Sheet.pdfDanfoss 132F0005 User Manual.pdfDanfoss 132F0005 VLT Micro Drive FC 51 Operating Instructions.pdfDanfoss 132F0005 VLT Micro Drive Overview.pdfDanfoss 132F0005 VLT Micro Drive Programming Guide.pdfDanfoss 132F0005 VLT Micro Drive Quick Guide.pdfInformational Sheet.pdf
