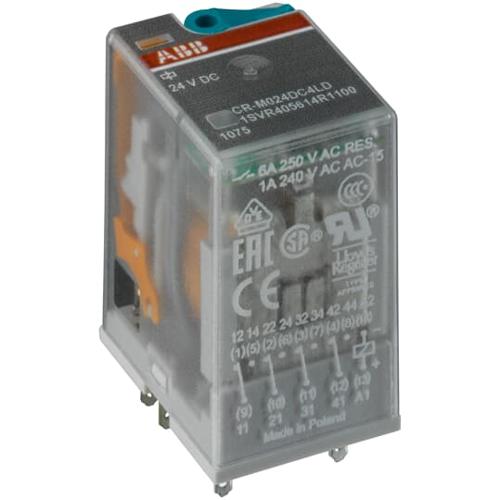

ABB 1SVR405614R1100 CR-M024DC4LD PLUGGABLE RELAY
Normally In Stock
Code: 127130
ABB 1SVR405614R1100 CR-M024DC4LD PLUGGABLE RELAY
Condition: New
Usually ships Same Day or Next Day$19.18
Sale Price
$15.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB 1SVR405614R1100 CR-M024DC4LD PLUGGABLE RELAY
Specifications
Relay Throws
Double Throw
Coil Voltage Rating
24 VDC
Relay Load Voltage AC Rating
250 VAC
Relay Poles
Single Pole
Manufacturer
ABB
Component
Interface Relay
Features
Standard miniature relays with mechanical status indication
13 different rated control supply voltages: DC versions: 12 V, 24 V, 48 V, 60 V, 110 V, 125 V, 220 V AC versions: 24 V, 48 V, 60 V, 110 V, 120 V, 230 V
Output: 2 c/o (SPDT) contacts (12 A), 3 c/o (SPDT) contacts (10 A) or 4 c/o (SPDT) contacts (6 A)
Available with or without LED
4 c/o (SPDT) contact version optionally equipped with gold contacts, LED and free wheeling diode
Integrated test button for manual actuation and locking of output contacts (blue =DC, orange = AC) that can be removed if necessary
Cadmium-free contact material
Suited for logical and standard sockets
Width on socket: 27 mm (1.063 in)
Pluggable function modules: reverse polarity protection/ free wheeling diode, LED indication, RC elements, overvoltage protection
