Code: 123683

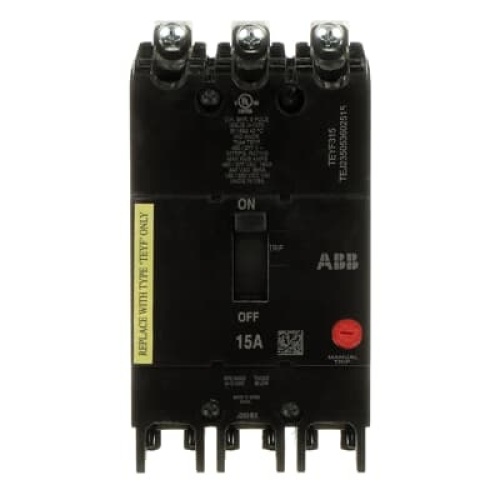

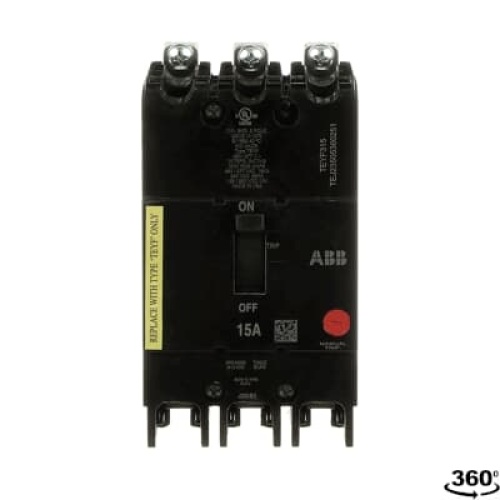

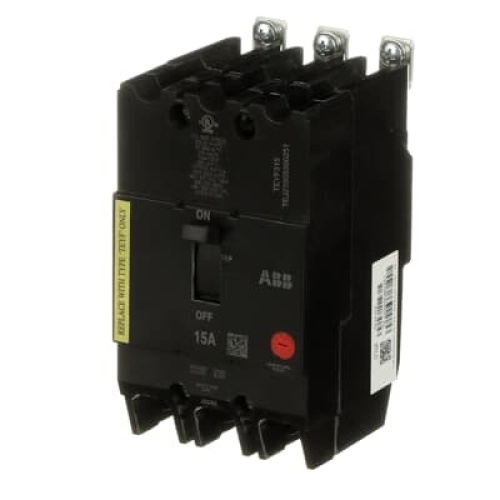

ABB TEYF315 MCCB 480Y/277 VAC, 15 Amp, Three Pole
Normally In Stock
ABB TEYF315 Molded Case Circuit Breaker - TEYF - 120/240 VAC,240 VAC,277 VAC,480/277 VAC - 15 Amp - Three Pole
Condition: New
Usually ships Same Day or Next Day$1491.08
Sale Price
$1242.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB TEYF315 - The TEyF is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480y/277 VAC systems. The bolt-on mounting base accessory makes the TEyF suitable for varied applications as a lug-lug breaker. All TEyF circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEyF breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. TEYF 3 POLE 15 AMP
Specifications
Amperage (Molded Case Breaker)
15 Amp
Poles (Molded Case Breaker)
Three Pole
Maximum Voltage (Molded Case Breaker)
240 VAC
Maximum Voltage (Molded Case Breaker)
277 VAC
Frame Type (Molded Case Breaker)
TEYF
Maximum Voltage (Molded Case Breaker)
120/240 VAC
Maximum Voltage (Molded Case Breaker)
480/277 VAC
Manufacturer
ABB
Component
Molded Case Circuit Breaker
Features
The TEY family of circuit breakers (TEY, TEYF, TEYD, TEYH, and TEYL) are one-inch wide per pole, compact, bolt-on circuit breakers for use on grounded 480Y/277 Vac systems, and are typically installed within Lighting Panelboards, including GE A-Series
Short circuit ratings at 480/277 Vac are shown in the tables that follow
Ratings at other voltages are shown in the Quick Reference Guide at the beginning of this section
Bolt-On mounting bases TEY3B (page 6-101) and TEY3B125 (page 6-33) make these frames suitable for unit mount / lug-lug connected applications
Handle tie kits, suitable for use with multiple single pole breakers used on shared neutral circuits (page 6-33) are available for TEYD/H/L circuit breakers.
