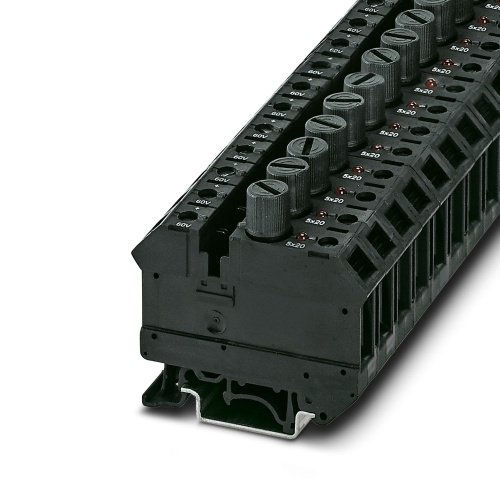

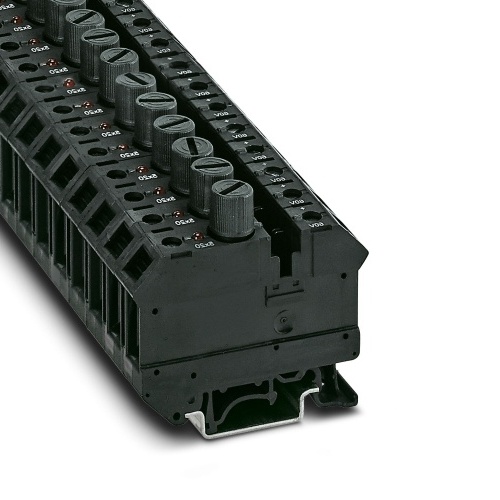

Phoenix Contact 3005154 Fuse modular terminal block UK 10-DREHSILED 60 (5X20)
Normally In Stock
Code: 1236
UK 10-DREHSILED 60 (5X20) Phoenix Contact 3005154 Phoenix Contact UK-10DREHSILED60. Fuse Terminal Block (30-60V LED indicator) 12mm with screw cap for 5mm x 20mm glass fuse insert, 20A, screw cap fuse removal, 24-6 AWG.
Condition: New
Usually Ships Same day or Next Day$36.64
Sale Price
$30.53
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3005154 The modular terminal block has a fuse type of Glass / ceramics with a rating of G / 5 x 20 and a nominal voltage of 500 V. It can handle a nominal current of 10 A and features screw connections for connection methods. The rated cross section is 1.5 mm2, while the available range is 0.5 mm2 to 16 mm2. The terminal block is mounted using types NS 35/7,5, NS 35/15, or NS 32 and has a black color.
Specifications
Terminal Block Indication
48V LED Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
12 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
20
Terminal Block Component Color
Black
Terminal Block Disconnect
Removable Disconnect
Terminal Block Max Wire Size
6
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Can be bridged with FBI ... fixed bridge
Downloads
Phoenix 3005154 CAD data International.dxfPhoenix 3005154 CAD data International.pdfPhoenix 3005154 CAD data International.stpPhoenix 3005154 CAD Drawing.zipPhoenix 3005154 Manufacturers declaration English.pdfPhoenix 3005154 Manufacturers declaration International.pdfPhoenix 3005154 Safety note English.pdfPhoenix 3005154 Spec Sheet.pdfPhoenix 3005154 Tender Text English.zip
