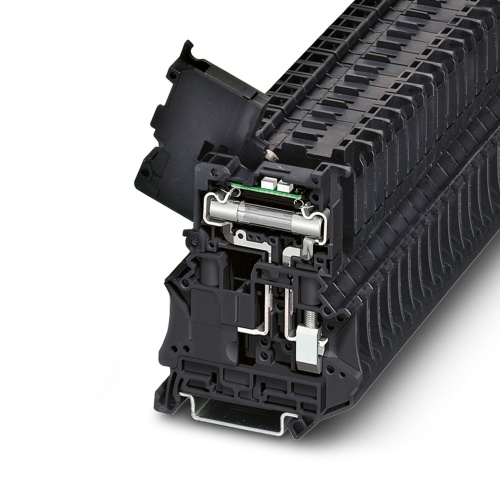

Phoenix Contact 3046427 Fuse modular terminal block UT 6-HESILED 60 (6,3X32)
Normally In Stock
Code: 1227
UT 6-HESILED 60 (6,3X32) Phoenix Contact 3046427 Phoenix Contact UT 6-HESILED 60 (6.3X32). Fuse Block 8.2mm Black with screw connection for 1/4" x 1-1/4" glass fuse insert with 30-60 V AC/DC light indicator, 60V, 10A, screw connection, 8-24 AWG.
Condition: New
Usually Ships Same day or Next Day$15.91
Sale Price
$13.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046427 The fuse modular terminal block features a glass-ceramic fuse with a rating of G/6,3 x 32 and is designed for use with nominal voltages of 60 V and current ratings up to 10 A. It utilizes screw connections and has a rated cross-section of 6 mm², while its internal cross-section ranges from 0.2 mm² to 10 mm². This terminal block can be mounted using the NS 35/7,5 or NS 35/15 mounting types, and is characterized by its black color.
Specifications
Terminal Block Indication
48V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
60 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Max Wire Size
8
Terminal Block Component Color
Black
Terminal Block Fuse Type
3 X 32
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Test pick-off on both sides in the fuse lever
Tested for railway applications
An extremely compact design
Downloads
Phoenix 3046427 CAD data International.dxfPhoenix 3046427 CAD data International.pdfPhoenix 3046427 CAD data International.stpPhoenix 3046427 CAD Drawing.zipPhoenix 3046427 Manufacturers declaration English.pdfPhoenix 3046427 Manufacturers declaration International.pdfPhoenix 3046427 Safety note English.pdfPhoenix 3046427 Spec Sheet.pdfPhoenix 3046427 Tender Text English.zip
