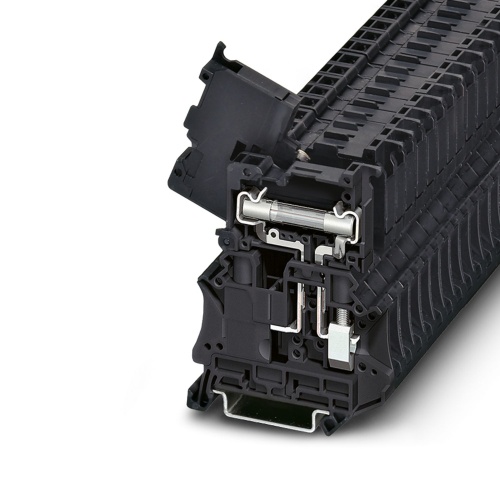

Phoenix Contact 3046401 Fuse modular terminal block UT 6-HESI (6,3X32)
Normally In Stock
Code: 1225
UT 6-HESI (6,3X32) Phoenix Contact 3046401 Phoenix Contact UT 6-HESI (6.3X32). Fuse Block 8.2mm Black with screw connection for 1/4" x 1-1/4" glass fuse insert without indicator, 630V, 10A, screw connection, 8-24 AWG.
Condition: New
Usually Ships Same day or Next Day$8.36
Sale Price
$6.97
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046401 A fuse with a glass or ceramic body and rated for 630V nominal voltage, has a 6.3x32mm cross section and is designed for connections up to 10A current, using a screw connection method and can be mounted using the NS 35/7.5 or NS 35/15 mounting type, with a recommended cross-sectional area ranging from 0.2-10mm², and has a black color rating.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
630 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Max Wire Size
8
Terminal Block Component Color
Black
Terminal Block Fuse Type
3 X 32
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Test pick-off on both sides in the fuse lever
Tested for railway applications
An extremely compact design
Downloads
Phoenix 3046401 CAD data International.dxfPhoenix 3046401 CAD data International.pdfPhoenix 3046401 CAD data International.stpPhoenix 3046401 CAD Drawing.zipPhoenix 3046401 Manufacturers declaration English.pdfPhoenix 3046401 Manufacturers declaration International.pdfPhoenix 3046401 Safety note English.pdfPhoenix 3046401 Spec Sheet.pdfPhoenix 3046401 Tender Text English.zip
