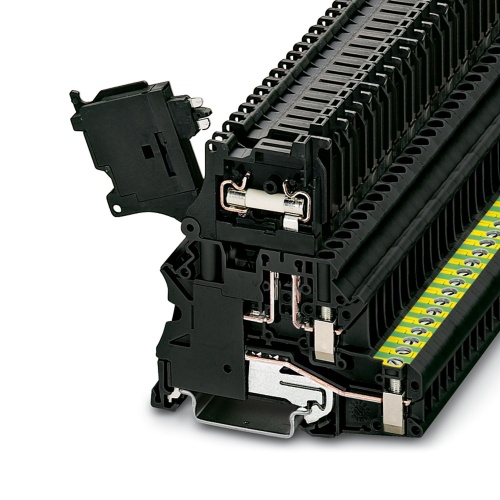

Phoenix Contact 3070066 Fuse modular terminal block UT 4-PE/HESILED 60 (5X20)
Normally In Stock
Code: 1219
UT 4-PE/HESILED 60 (5X20) Phoenix Contact 3070066 Fuse-Ground BlockUT 4-PE/HESILED 60 (5X20)
Condition: New
Usually Ships Same day or Next Day$18.26
Sale Price
$15.22
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3070066 The fuse terminal block has a glass/ceramic fuse with the rating G and dimensions 5 x 20mm, suitable for use at 60V nominal voltage. The current capacity is 6.3A, and it features a screw connection method. The cross-sectional area of the rated section is 4mm², while other areas range from 0.14 to 6mm². This terminal block can be mounted in either an NS35/7.5 or NS35/15 configuration and has a black color.
Specifications
Terminal Block Indication
48V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
60 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Ground Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides

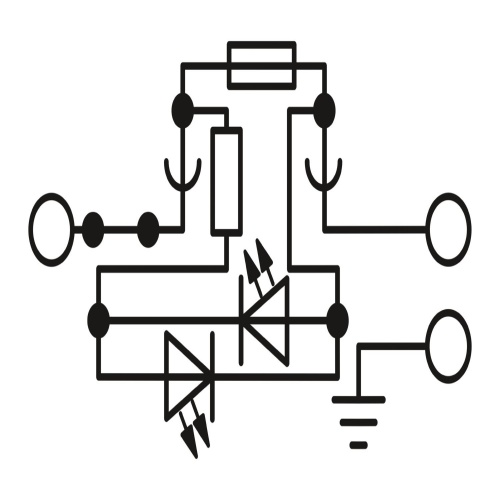

Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3070066 CAD data International.dxfPhoenix 3070066 CAD data International.pdfPhoenix 3070066 CAD data International.stpPhoenix 3070066 CAD Drawing.zipPhoenix 3070066 Manufacturers declaration English.pdfPhoenix 3070066 Manufacturers declaration International.pdfPhoenix 3070066 Safety note English.pdfPhoenix 3070066 Spec Sheet.pdfPhoenix 3070066 Tender Text English.zip
