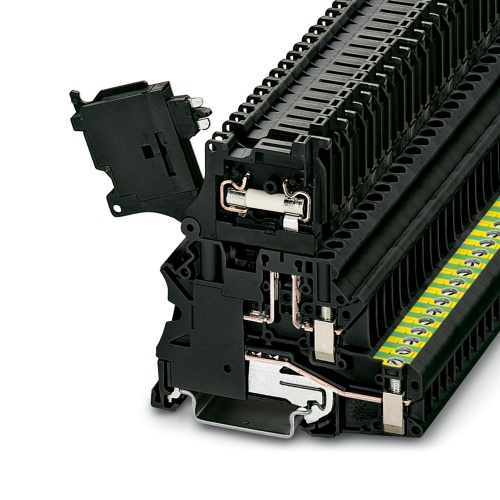

Phoenix Contact 3070053 Fuse modular terminal block UT 4-PE/HESILED 24 (5X20)
Normally In Stock
Code: 1218

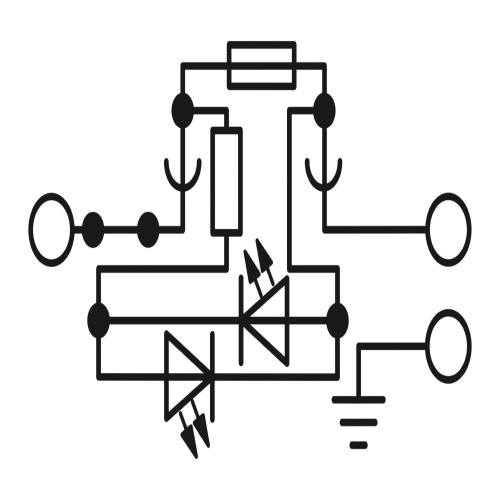

UT 4-PE/HESILED 24 (5X20) Phoenix Contact 3070053 Phoenix Contact UT 4-PE/HESI LED 24 (5X20). Fuse Block with ground Block 6.2mm Black with screw connection for 5mm x 20mm glass fuse insert with 12-30 V AC/DC light indicator, 24V, 6.3A, screw connection, 26-10 AWG.
Condition: New
Usually Ships Same day or Next Day$18.26
Sale Price
$15.22
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3070053 A modular terminal block with a glass/ceramic fuse is rated for 24V and 6.3A of nominal current, featuring screw connections with a cross-sectional area ranging from 0.14mm2 to 6mm2. The block is designed with a mounting type of NS35/7.5 or NS35/15 and has a black color with specific fuse types such as G / 5 x 20.
Specifications
Terminal Block Indication
12V LED Indicator
Terminal Block Indication
24V LED Indicator
Terminal Block Indication
48V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Ground Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3070053 CAD data International-2.pdfPhoenix 3070053 CAD data International.dxfPhoenix 3070053 CAD data International.pdfPhoenix 3070053 CAD data International.stpPhoenix 3070053 CAD Drawing.zipPhoenix 3070053 Manufacturers declaration English.pdfPhoenix 3070053 Safety note English.pdfPhoenix 3070053 Spec Sheet.pdfPhoenix 3070053 Tender Text English.zip
