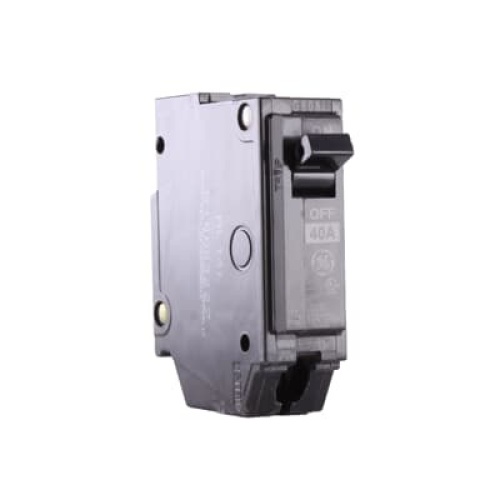

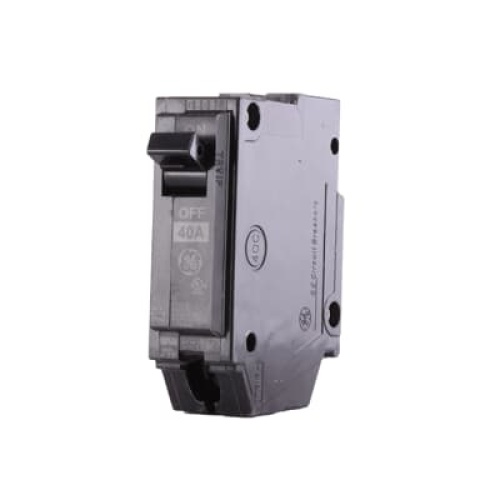

ABB THQL1140 Mini CB - 40 Amp, 1P
Normally In Stock
Code: 121776
ABB THQL1140 - Miniature Circuit Breaker - 120/240 VAC - 40 Amp - Single Pole
Condition: New
Usually ships Same Day or Next Day$16.38
Sale Price
$13.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB THQL1140 Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications.
Specifications
Breaker Mechanism Type
Toggle
Breaker Amperage Rating
40 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
120 VAC
Breaker Voltage Rating
240 VAC
Component
Miniature Circuit Breaker
Manufacturer
ABB
Features
Q-Line Frame: They belong to the Q-Line family, a series of compact, thermal-magnetic circuit breakers.
Plug-in Mounting: They are designed for straightforward installation in compatible load centers.
Thermal Magnetic Trip: The LI (long time and instantaneous) trip function provides both overload and short-circuit protection.
Quick-make/Quick-break Mechanisms: This feature helps to enhance safety and reliability during operation.
Common Trip Bars: THQL breakers have common trip bars for safety, especially in multi-pole configurations.
Easy-to-spot Trip Indication: The clear trip indication makes it easy to identify when a breaker has tripped.
Voltage and Amperage Ratings: Available in various voltage (typically 120/240 VAC) and amperage ratings to suit different applications.
Interrupting Rating: They have an interrupting rating, commonly 10 kAIC.
Wire Compatibility: They accommodate a range of wire sizes (e.g., 8 to 3 AWG for aluminum/copper wire).
