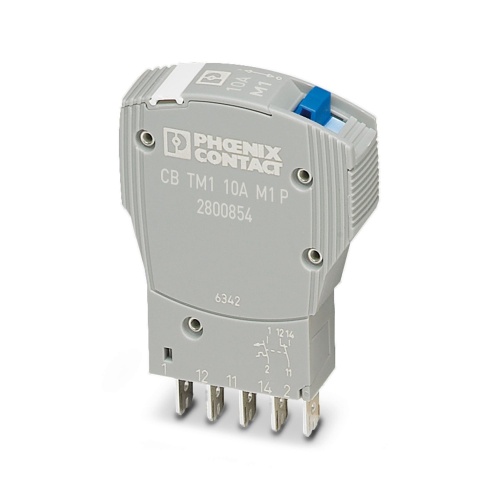

Phoenix Contact 2800854 Thermal-magnetic device circuit breaker CB TM1 10A M1 P
Normally In Stock
Code: 12158
Phoenix Contact 2800854 Pluggable Breaker CB TM1 1 Pole 10A
Condition: New
Usually ships Same Day or Next Day$56.70
Sale Price
$47.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800854 The thermal-magnetic device is a type of circuit breaker that features one position switch and has a medium-blow tripping characteristic, allowing for one changeover contact and a plug to connect the base element.
Specifications
Breaker Type
Supplementary Breaker
Breaker Switching Type
Miniature Thermal
Breaker Auxilary Contacts
Double Throw NO Or NC
Breaker Mechanism Type
Toggle
Breaker UL Rating
UL 1077 Recognized
Breaker Amperage Rating
10 Amp
Breaker Number of Poles
Single Pole
Breaker Protection For
All Application Types
Breaker Overcurrent Protection Rating
C Curve 7-10 X Amp Rating
Breaker Trip Speed
Medium Trip
Breaker Unit
Plug In Unit
Breaker Mount Type
Plug-In
Manufacturer
Phoenix Contact
Component
Pluggable Breaker
Features
Individually adjustable with protective plugs

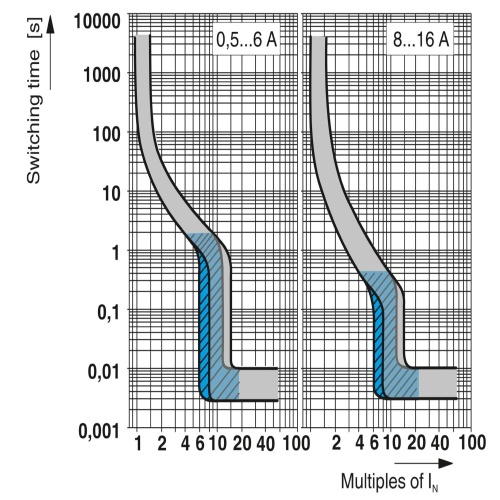

Switch higher starting currents with the aid of the M1 characteristic curve
Protective plug with fixed nominal current value as protection against unintentional changes
Increased safety with electrical isolation in the event of errors
Downloads
Phoenix 2800854 CAD data International.dxfPhoenix 2800854 CAD data International.stpPhoenix 2800854 CAD Drawing.zipPhoenix 2800854 Flyer English.pdfPhoenix 2800854 Manufacturers declaration English.pdfPhoenix 2800854 Manufacturers declaration International.pdfPhoenix 2800854 Package Slip International.pdfPhoenix 2800854 Spec Sheet.pdfPhoenix 2800854 Tender Text English.zipPhoenix 2800854 Various English-2.pdfPhoenix 2800854 Various English.pdf
