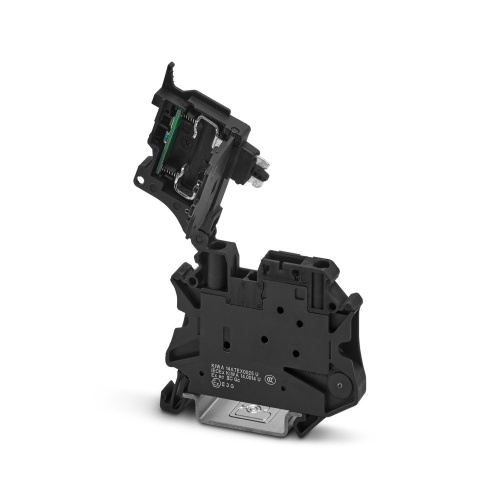

Phoenix Contact 3046126 Fuse modular terminal block UT 4-HESILED 60 (5X20)
Normally In Stock
Code: 1215
UT 4-HESILED 60 (5X20) Phoenix Contact 3046126 Phoenix Contact UT 4-HESILED 60 (5X20). Fuse Block 6.2mm with screw connection for 5mm x 20mm glass fuse insert with 30-60 V AC/DC indicator, 60V, 6.3A, screw connection, 26-10 AWG (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$10.43
Sale Price
$8.69
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046126 A fuse with a glass or ceramic body and rated for 60V with a maximum current of 6.3A has a screw connection and is designed to accommodate cross sections from 0.14mm² to 6mm², with an overall rated cross section of 4mm², and can be mounted on either the NS35/7.5 or NS35/15 mounting type, characterized by a black color.
Specifications
Terminal Block Indication
48V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
60 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Test pick-off on both sides in the fuse lever
Tested for railway applications
An extremely compact design
Downloads
Phoenix 3046126 CAD data International.dxfPhoenix 3046126 CAD data International.pdfPhoenix 3046126 CAD data International.stpPhoenix 3046126 CAD Drawing.zipPhoenix 3046126 Manufacturers declaration English.pdfPhoenix 3046126 Manufacturers declaration International.pdfPhoenix 3046126 Safety note English.pdfPhoenix 3046126 Spec Sheet.pdfPhoenix 3046126 Tender Text English.zip
