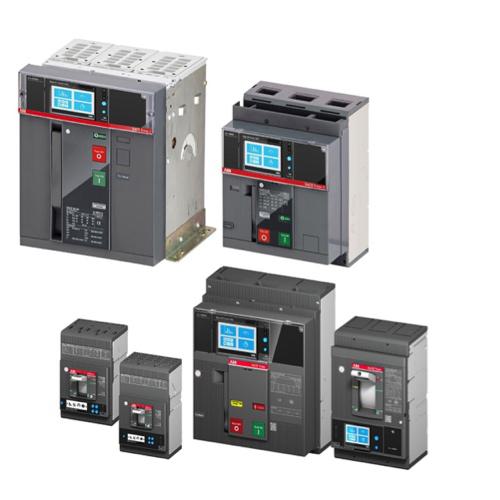

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
ABB THHQC1145LL Mini CB - 45 Amp, 1P
Normally In Stock
Code: 121389
ABB THHQC1145LL - Miniature Circuit Breaker - 120/240 VAC - 45 Amp - Single Pole
Condition: New
Usually ships Same Day or Next Day$69.14
Sale Price
$57.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB THHQC1145LL Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QC breakers are lug-lug versions of the Q Line and are available for 35mm DIN rail mounting. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories.
Specifications
Breaker Mechanism Type
Toggle
Breaker Number of Poles
Single Pole
Breaker Amperage Rating
45 Amp
Breaker Voltage Rating
120 VAC
Breaker Voltage Rating
240 VAC
Component
Miniature Circuit Breaker
Breaker Function
LI
Manufacturer
ABB
Line
Q-Line
Line
Q-Line (Lug-Lug)
Features
Compact Design: One inch wide per pole, making them suitable for space-constrained installations.
Thermal-Magnetic Protection: Provides both thermal and magnetic trip characteristics for reliable protection against overloads and short circuits.
Quick-Make/Quick-Break Mechanism: Ensures fast and reliable switching action.
Common Trip Bar: All poles trip simultaneously in the event of an overload or short circuit.
Easy Trip Indication: The handle trips to the center position, making it easy to identify a tripped breaker.
Copper Stabs: Tin-plated for corrosion resistance, ensuring a reliable and permanent connection.
Heat Resistant Cases: Thermoset cases and covers provide structural rigidity and stability.
Dedicated Calibration Screw: Cemented in place to prevent shifting and ensure consistent trip performance.
Multiple Mounting Options: Available in both bolt-on and lug-lug (cable-in/cable-out) versions, with some models suitable for 35mm DIN rail mounting.
Various Accessories: Can be ordered with auxiliary contacts and shunt trip accessories for added functionality.
